weight and performance calculations for the Lockheed Model 12 Electra Junior

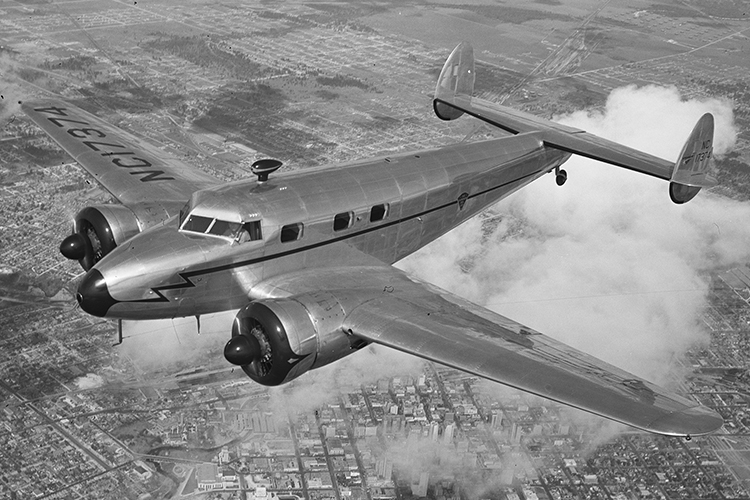

A picture containing outdoor, plane, airplane, old

Description automatically generated

Lockheed Model 12 Electra Junior

role : light passenger / executive aircraft

importance : ***

first flight : 27 June 1936 operational : February 1937

country : United States of America

design :

production : 130 aircraft

general information :

Smaller version of the L.10 Electra, designed as feeder airliner. It was not much used

as airliner, but popular as an executive aircraft. First modern executive aircraft, with

high speed and long range.

Main spar passed through the cabin.

users :

crew : 2 passengers : 6

engine : 2 Pratt & Whitney R-985-SB Wasp Jr air-cooled 9 -cylinder radial engine 400

[hp] (298.3 KW) supercharged engine, constant power to height : 1500 [m]

dimensions :

wingspan : 15.09 [m], length : 11.07 [m], height : 2.97 [m]

wing area : 32.7 [m^2]

weights :

max.take-off weight : 3810 [kg]

empty weight operational : 2615 [kg] useful load : 600 [kg]

performance :

maximum speed :362 [km/u] op 1500 [m]

cruise speed :344 [km/u] op 1500 [m]

service ceiling : 7000 [m]

range : 1300 [km]

description :

low-winged monoplane with retractable landing gear with tail wheel

tapered wing with split flap airfoil : Clark Y

engines and landing gear attached to the wings, fuel tanks in the wings

double fin tail plane

construction : all-metal stressed-skin (duraluminium) airplane

airscrew :

two Hamilton Standard constant speed 3 -bladed tractor airscrews with max. efficiency

:0.74 [ ]

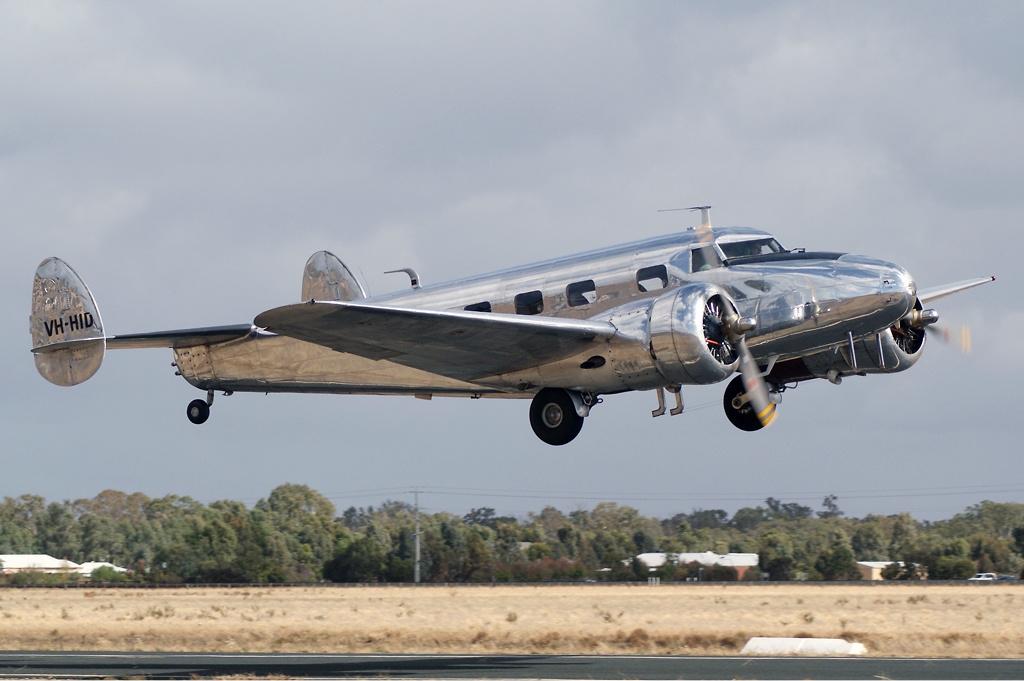

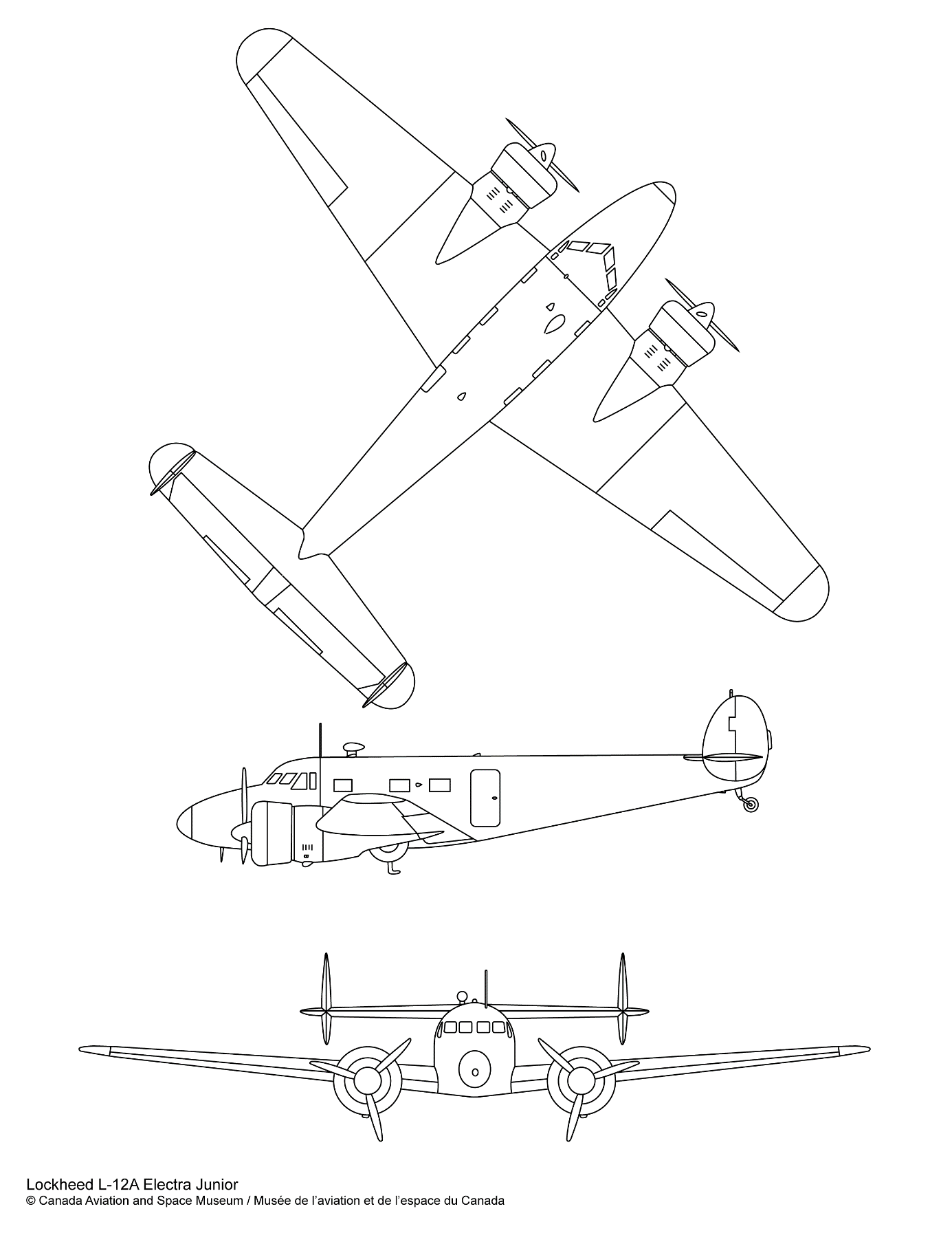

Lockheed L-12A Electra Junior | Canada Aviation and Space Museum

estimated diameter airscrew 2.23 [m]

power loading prop : 89.17 [KW/m]

angle of attack prop at max. speed : 27.56 [ ]

reduction : 1.00 [ ]

airscrew revs : 2200 [r.p.m.]

pitch at Max speed 2.74 [m]

blade-tip speed at Vmax and max revs. : 276 [m/s]

calculation : *1* (dimensions)

measured wing chord : 2.23 [m] at 50% wingspan

mean wing chord : 2.17 [m]

calculated average wing chord tapered wing with rounded tips: 2.15 [m]

wing aspect ratio : 6.96 []

seize (span*length*height) : 496 [m^3]

calculation : *2* (fuel consumption)

oil consumption : 9.5 [kg/hr]

fuel consumption(cruise speed) : 124.7 [kg/hr] (170.1 [litre/hr]) at 68 [%] power

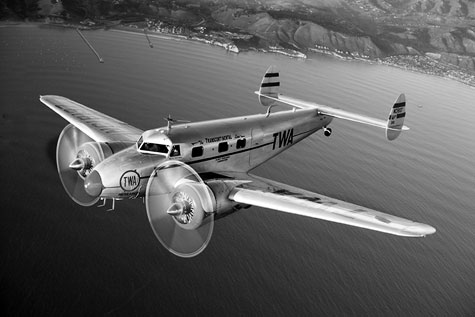

A picture containing outdoor, sky, plane, aircraft

Description automatically generated

distance flown for 1 kg fuel : 2.76 [km/kg] at 3500 [m] height, sfc : 309.0 [kg/kwh]

estimated total fuel capacity : 730 [litre] (535 [kg])

calculation : *3* (weight)

weight engine(s) dry : 580.0 [kg] = 0.97 [kg/KW]

weight 63.1 litre oil tank : 5.37 [kg]

oil tank filled with 4.5 litre oil : 4.0 [kg]

oil in engine 3.3 litre oil : 3.0 [kg]

fuel in engine 4.1 litre fuel : 2.98 [kg]

weight 72.3 litre gravity patrol tank(s) : 10.8 [kg]

weight starter (E.H.I. - Electric Hand Inertia): 7.3 [kg]

weight NACA cowling 13.4 [kg]

weight variable pitch control : 3.8 [kg]

weight airscrew(s) incl. boss & bolts : 49.2 [kg]

total weight propulsion system : 671 [kg](17.6 [%])

***************************************************************

fuselage aluminium frame : 360 [kg]

cabin layout : pitch : 87 [cm] (1+1) seating in 3.0 rows

weight 1 fire extinguisher : 3 [kg]

weight 6 windows : 5.4 [kg]

passenger cabin width : 1.31 [m] cabin length : 2.61 [m] cabin height : 1.80 [m]

weight cabin furbishing : 12.7 [kg]

weight cabin floor : 21.9 [kg]

fuselage covering ( 38.8 [m2] duraluminium 2.29 [mm]) : 234.0 [kg]

fuselage (sound proof) isolation : 11.3 [kg]

weight radio navigation equipment : 6.0 [kg]

weight Sperry gyro auto-pilot - course control equipment : 1.5 [kg]

weight instruments. : 6.0 [kg]

weight lighting : 1.5 [kg]

weight electricity generator : 3.4 [kg]

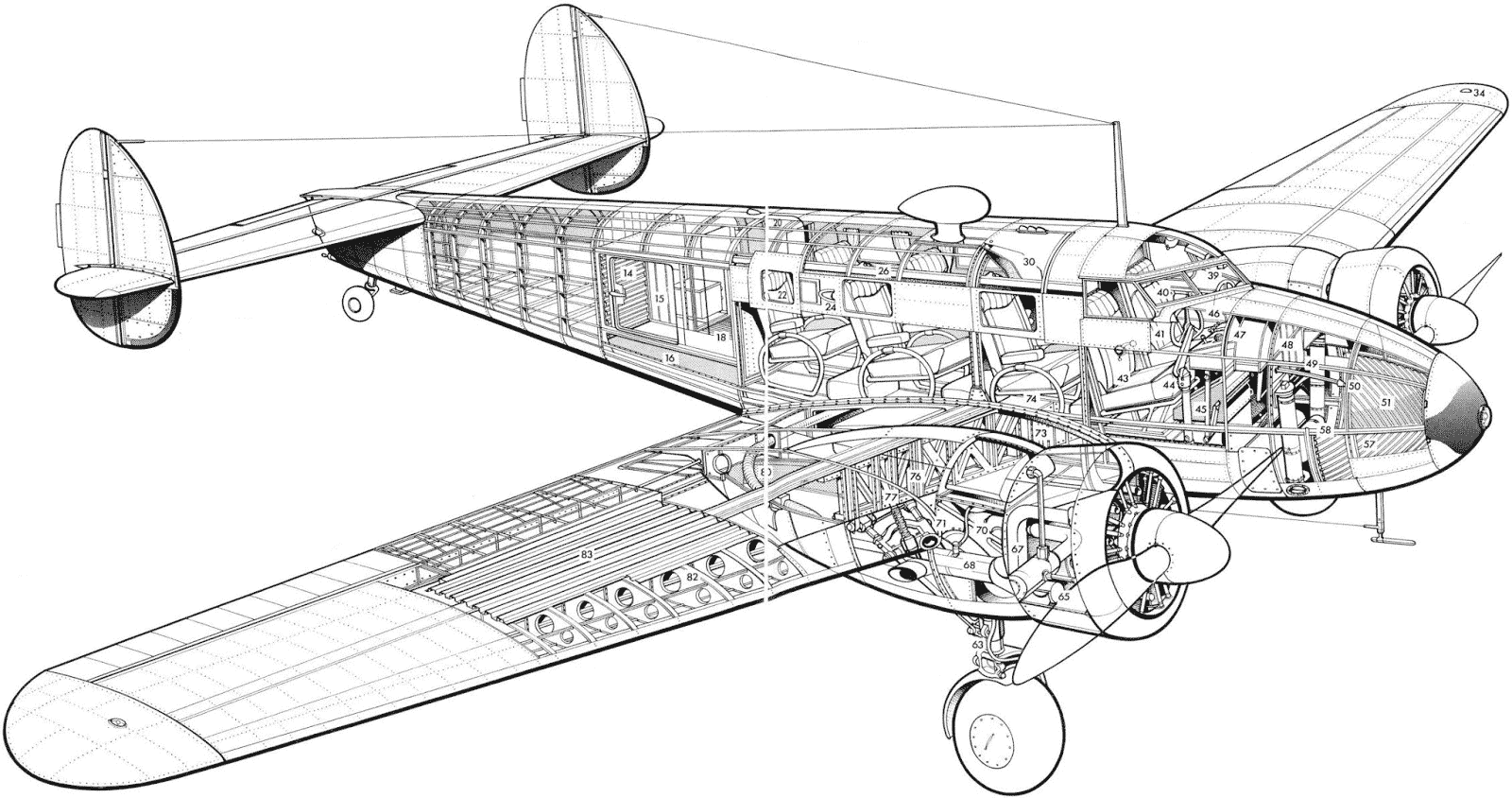

Lockheed Model 12 Electra Junior Cutaway Drawing in High quality

weight controls : 5.9 [kg]

weight seats : 40.0 [kg]

weight air conditioning : 9 [kg]

total weight fuselage : 706 [kg](18.5 [%])

***************************************************************

total weight aluminium ribs (90 ribs) : 136 [kg]

weight engine mounts : 30 [kg]

weight two 329 [litre] main fuel tanks empty : 52.6 [kg]

weight wing covering (painted aluminium 1.94 [mm]) : 343 [kg]

total weight aluminium spars (multi-cellular wing structure) : 180 [kg]

weight wings : 658 [kg]

weight wing/square meter : 20.12 [kg]

cantilever wing without bracing cables

weight rubber de-icing boots : 16.6 [kg]

weight fin & rudder (2.6 [m2]) : 53.6 [kg]

weight stabilizer & elevator (3.7 [m2]): 92.8 [kg]

weight split flap(1.6 [m2]) : 19.4 [kg]

total weight wing surfaces & bracing : 923 [kg] (24.2 [%])

*******************************************************************

Can only operate from paved runways

wheel pressure : 1905.0 [kg]

weight 2 wheels (900 [mm] by 138 [mm]) : 95.1 [kg]

weight tailwheel(s) : 5.9 [kg]

weight wheel hydraulic operated retraction system : 18.7 [kg]

weight undercarriage with axle 160.3 [kg]

total weight landing gear : 280.0 [kg] (7.3 [%]

*******************************************************************

********************************************************************

calculated empty weight : 2579 [kg](67.7 [%])

weight oil for 4.5 hours flying : 43.3 [kg]

calculated operational weight empty : 2623 [kg] (68.8 [%])

published operational weight empty : 2615 [kg] (68.6 [%])

___o___

" "

weight crew : 162 [kg]

weight fuel for 2.0 hours flying : 249 [kg]

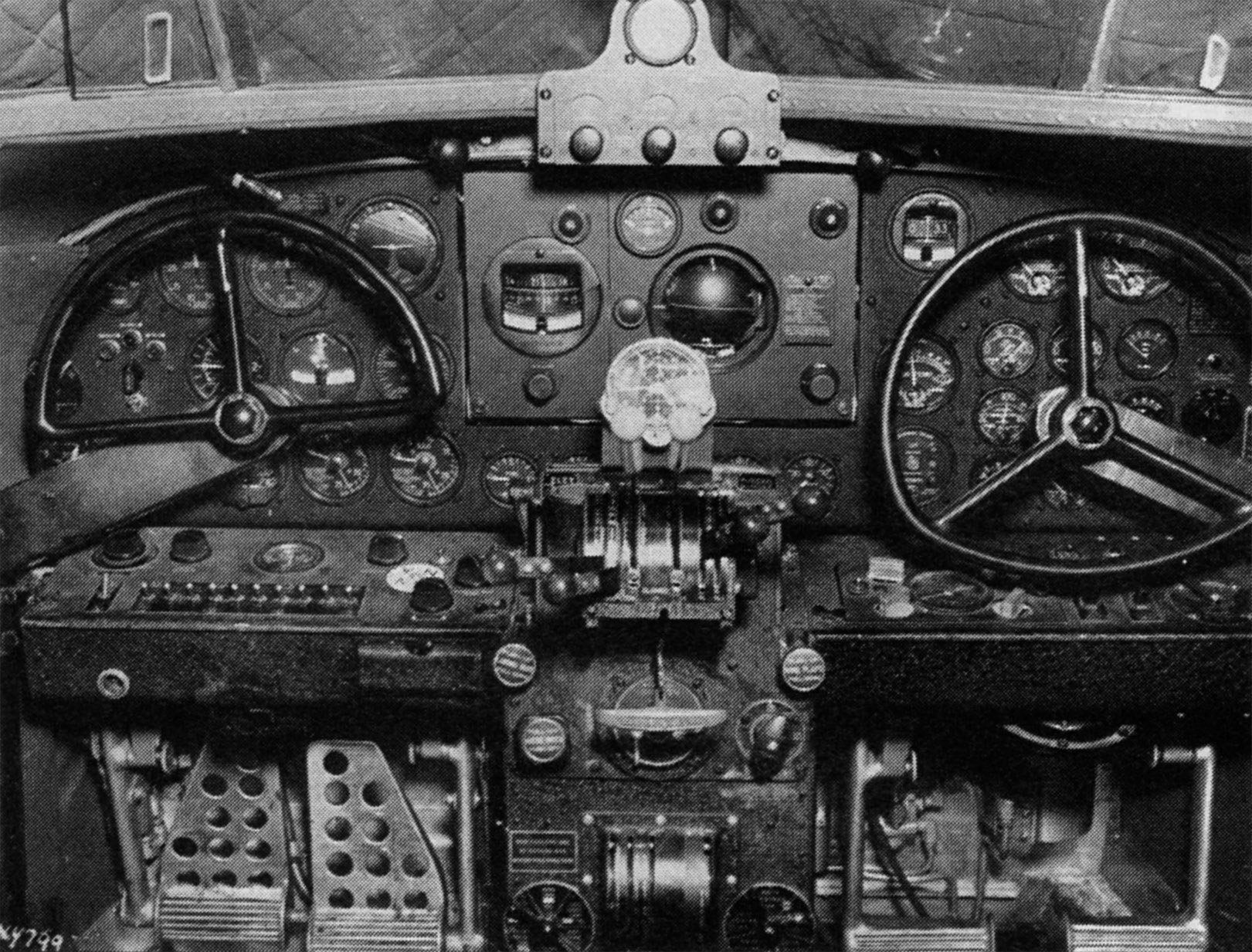

LOCKHEED 12 ELECTRA JUNIOR (C-40) - Flight Manuals

********************************************************************

operational weight empty: 3034 [kg](79.6 [%])

weight 6 passengers : 462 [kg]

weight luggage & freight : 138 [kg]

operational weight loaded: 3634 [kg](95.4 [%])

fuel reserve : 176.2 [kg] enough for 1.41 [hours] flying

operational weight fully loaded : 3810 [kg] with fuel tank filled for 80 [%]

published maximum take-off weight : 3810 [kg] (100.0 [%])

calculation : * 4 * (engine power)

power loading (Take-off) : 6.39 [kg/kW]

power loading (operational without useful load) : 5.09 [kg/kW]

power loading (Take-off) 1 PUF: 12.77 [kg/kW]

total power : 596.6 [kW] at 2200 [r.p.m]

calculation : *5* (loads)

manoeuvre load : 5.9 [g] at 1000 [m]

limit load : 3.0 [g] ultimate load : 4.5 [g] load factor : 3.1 [g]

design flight time : 3.02 [hours]

design cycles : 15683 sorties, design hours : 47427 [hours]

operational wing loading : 910 [N/m^2]

wing stress (3 g) during operation : 136 [N/kg] at 3g emergency manoeuvre

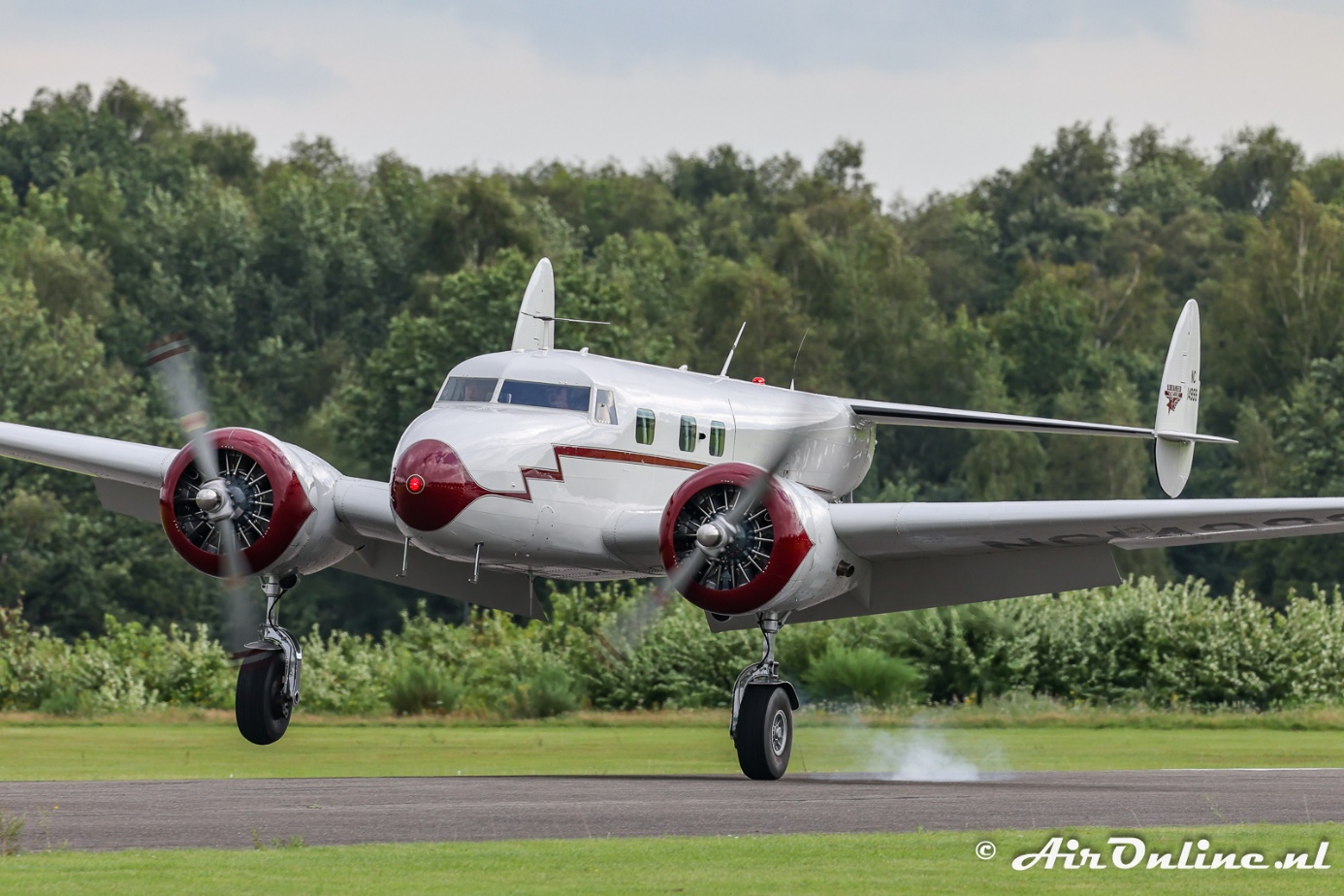

N14999 Lockheed 12A Electra Junior tijdens Fly-In op Genk Zwartberg |  AirOnline.nl

calculation : *6* (angles of attack)

angle of attack zero lift : -1.82 ["]

max. angle of attack (stalling angle) : 14.05 ["]

angle of attack at max. speed : 0.24 ["]

calculation : *7* (lift & drag ratios

lift coefficient at angle of attack 0° : 0.15 [ ]

lift coefficient at max. angle of attack : 1.31 [ ]

max.lift coefficient full flaps : 1.41 [ ]

lift coefficient at max. speed : 0.17 [ ]

induced drag coefficient at max. speed : 0.0018 [ ]

drag coefficient at max. speed : 0.0250 [ ]

drag coefficient (zero lift) : 0.0233 [ ]

calculation : *8* (speeds

stalling speed at sea-level (OW loaded : 3685 [kg]): 134 [km/u]

stalling speed at sea-level with full flaps (normal landing weight): 119 [km/u]

landing speed at sea-level (normal landing weight : 3124 [kg]): 136 [km/hr]

max. endurance speed : 148 [km/u] min. brpu : 53 [kg/hr] at cruise height : 100 [m]

max. rate of climb speed : 146.9 [km/hr] at sea-level

max. range speed : 255 [km/u] min.fuel cons.: 0.312 [kg/km] at cruise height : 5250 [m]

cruising speed : 344 [km/hr] at 3500 [m] (power:78 [%])

maximum speed : 362 [km/hr] at 1500 [m] (power:103 [%])

climbing speed at sea-level (loaded) : 529 [m/min]

climbing speed at 1000 [m] with 1 engine out (PUF / MTOW) : 169 [m/min]

calculation : *9* (regarding various performances)

take-off speed : 163.0 [km/u]

emergency/TO power : 450 [hp] at 2333 [rpm]

static prop wash : 173 [km/u]

high wheel pressure, can only take off from paved runways

Lockheed Electra | WWII (USAAF) United States

take-off distance at sea-level : 307 [m]

lift/drag ratio : 13.27 [ ]

climb to 1000m with max payload : 2.09 [min]

climb to 2000m with max payload : 4.46 [min]

climb to 3000m with max payload : 7.57 [min]

practical ceiling (operational weight 3034 [kg] ) : 7600 [m]

practical ceiling fully loaded (mtow- 30 min.fuel:3748 [kg] ) : 6400 [m]

calculation *10* (action radius & endurance)

published range : 1300 [km] with 2 crew and 554.2 [kg] useful load and 88.1 [%] fuel

range : 1174 [km] with 2 crew and 600.0 [kg] useful load and 79.6 [%] fuel

range : 1389 [km] with 6.0 passengers with each 10 [kg] luggage and 94.1 [%] fuel

Available Seat Kilometres (ASK) : 8334 [paskm]

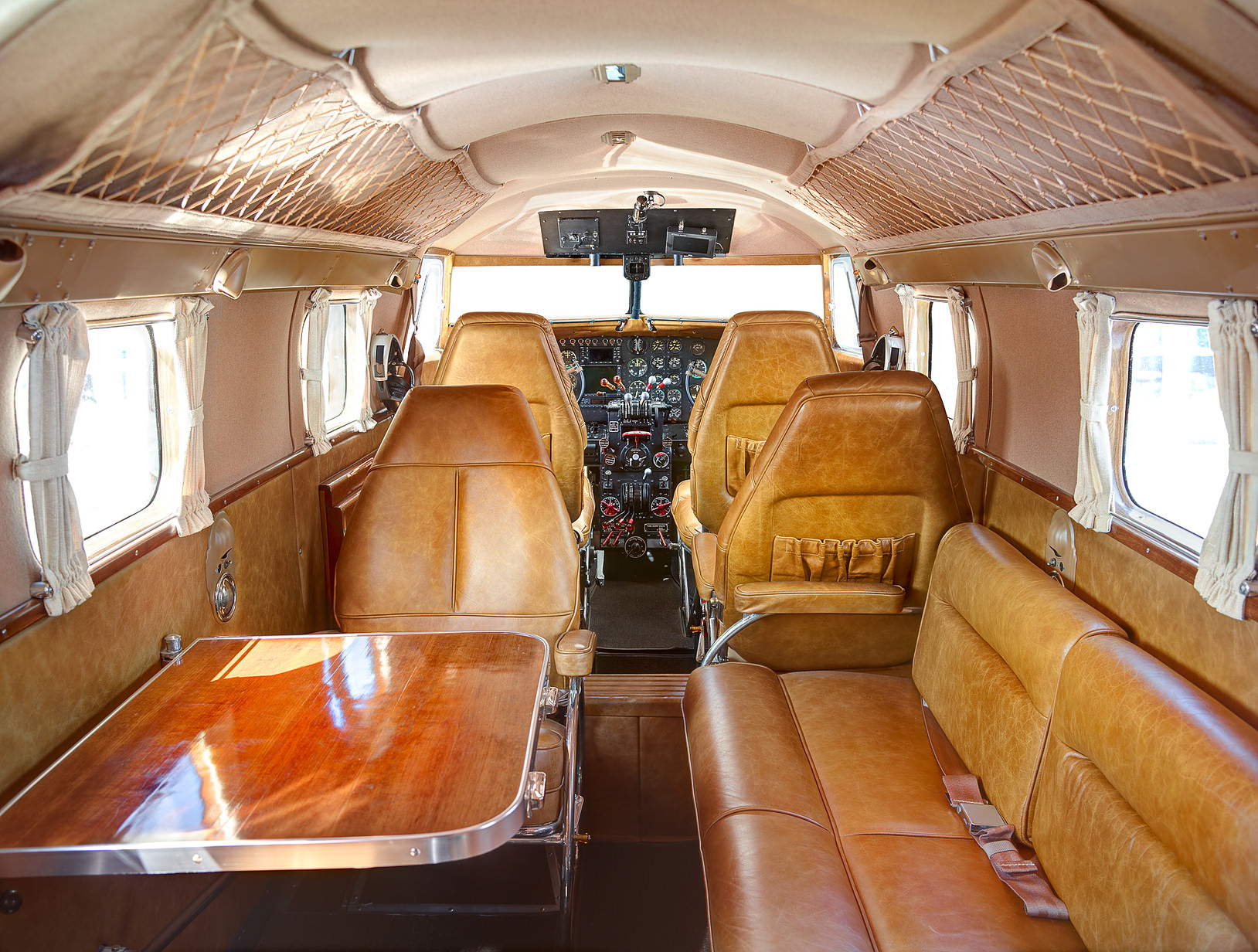

A Comprehensively Restored 1937 Lockheed Model 12 - $1,295,000 USD

max range theoretically with additional fuel tanks total 1509.5 [litre] fuel : 3542 [km]

useful load with range 500km : 925 [kg]

useful load with range 500km : 6 passengers

production (useful load): 318 [tonkm/hour]

production (passengers): 2063 [paskm/hour]

oil and fuel consumption per tonkm : 0.42 [kg]

fuel cost per paskm : 0.042 [eur]

crew cost per paskm : 0.094 [eur]

economic hours : 12775 [hours] is less then design hours

time between engine failure : 118 [hr]

can continue fly on 1 engine, low risk for emergency landing for PUF

writing off per paskm : 0.053 [eur]

insurance per paskm : 0.020 [eur]

maintenance cost per paskm : 0.157 [eur]

direct operating cost per paskm : 0.366 [eur]

direct operating cost per tonkm : 3.659 [eur]

Literature :

Piston-engined airliners page 35

Lockheed Model 12 Electra Junior - Wikipedia

DISCLAIMER Above calculations are based on published data, they must be

regarded as indication not as facts.

Calculated performance and weight may not correspond with actual weights

and performances and are assumptions for which no responsibility can be taken.

Calculations are as accurate as possible, they can be fine-tuned when more data

is available, you are welcome to give suggestions and additional information

so we can improve our program. For copyright on drawings/photographs/

content please mail to below mail address
