performance calculations for the CFM International LEAP-1A30

aircraft engine

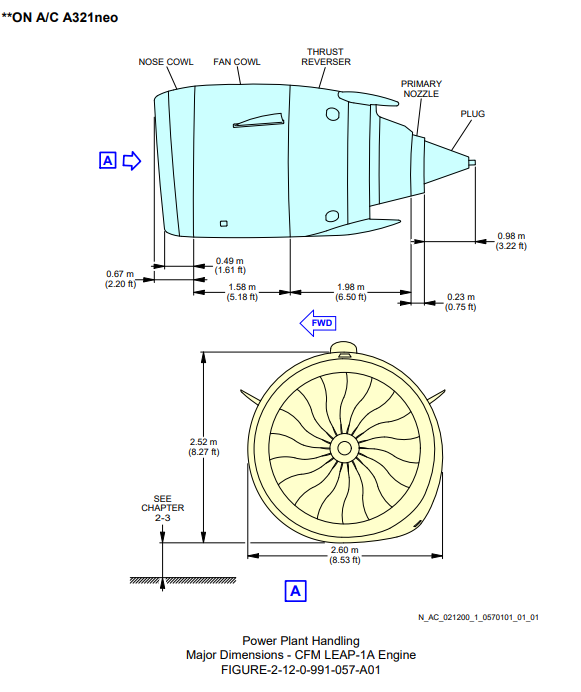

CFMI LEAP-1A turbofan engine | front and side view drawing | major dimensions

CFM International LEAP-1A30

turbofan engine of 143.0 [KN] (32147 [lbf]) thrust

introduction : 2016 country : USA importance : ***

applications : Airbus A321neo

max. rating (take-off) : 143.0 [KN] (32147 [lbf], 14582 [kgf])

weight engine(s) dry : 3100.0 [kg] = 46.13 [N/kg]

General information :

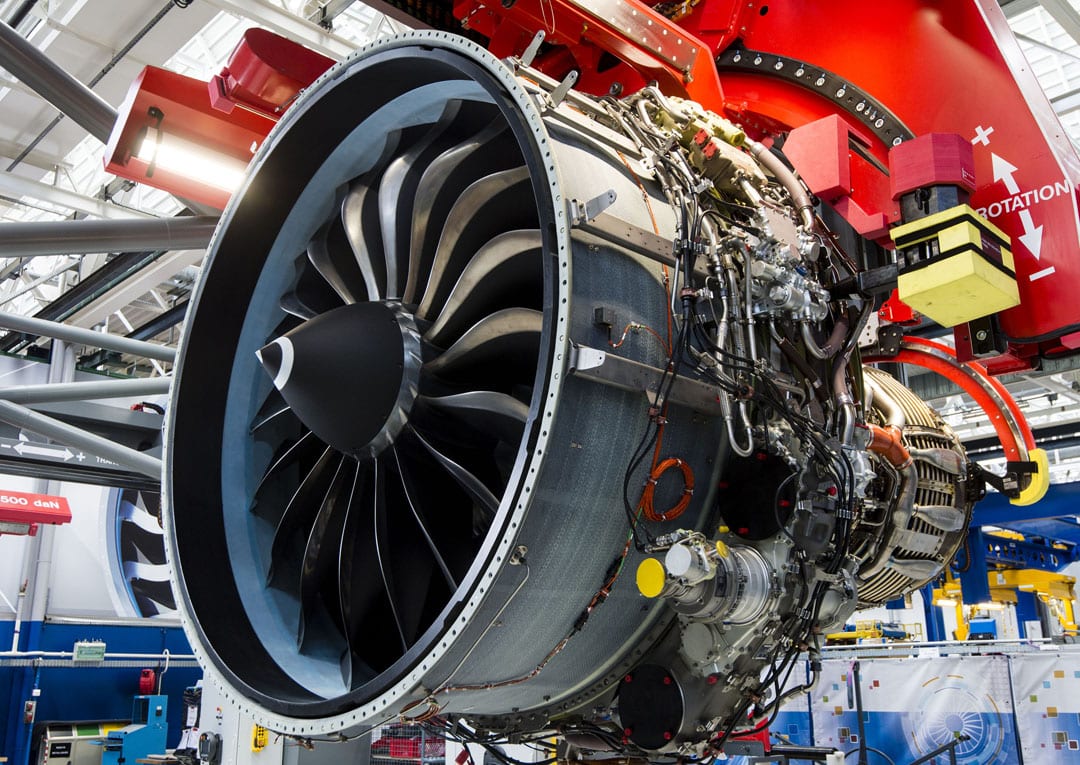

CFM LEAP-1A Achieves DUAL Certification - The GE Aerospace Blog | Aviation  & Flight News | picture of turbofan engine on production line

by-pass ratio : 11.00 : 1

overall pressure ratio (OPR) : 40.0 : 1

rpm LP : 3894 [rpm]

rpm HP : 19391 [rpm]

axial flow engine

no water injection

LP compressor stages : 4 [ ]

HP compressor stages : 10 [ ]

HP turbine stages : 2 [ ]

LP turbine stages : 7 [ ]

stages : 4 + 10 + 2 + 7

turbine inlet temperature : 0 [K]

fan diameter : 198.0 [cm] engine diameter : 242.0 [cm]

air mass flow : 309 [kg/s]

design hours : 516 [hr] time between overhaul : 258 [hr]

estimated specific fuel consumption (cruise power) :51.8 [kg/KNh]

CFMI LEAP-1A turbofan engine side and front view drawing

Literature :

CFM International LEAP - Wikipedia

Aircraft Characteristics | Airbus

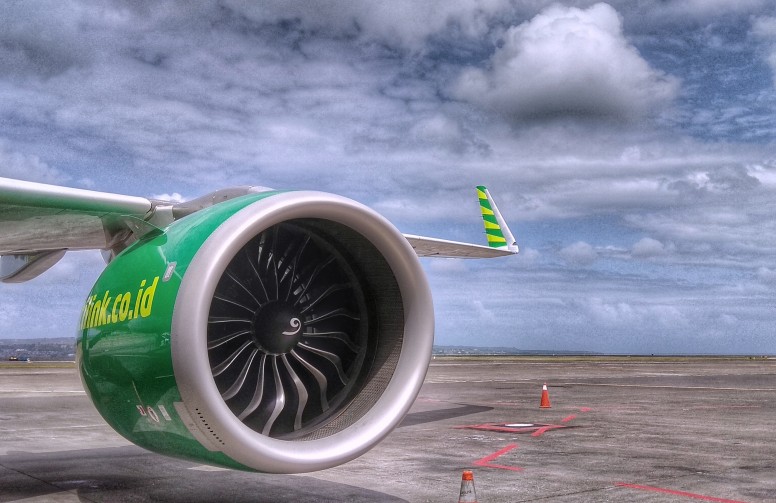

CFM Leap 1A Engine, Shoot by Xiaomi Reno 4 + Snapseed - Fotografi - Xiaomi  Community - Xiaomi

DISCLAIMER Above calculations are based on published data, they must be

regarded as indication not as facts.

Calculated performance and weight may not correspond with actual weights

and performances and are assumptions for which no responsibility can be taken.

Calculations are as accurate as possible, they can be fine-tuned when more data

is available, you are welcome to give suggestions and additional information
