performance calculations for the GE-Snecma CFM56-5B1 aircraft engine

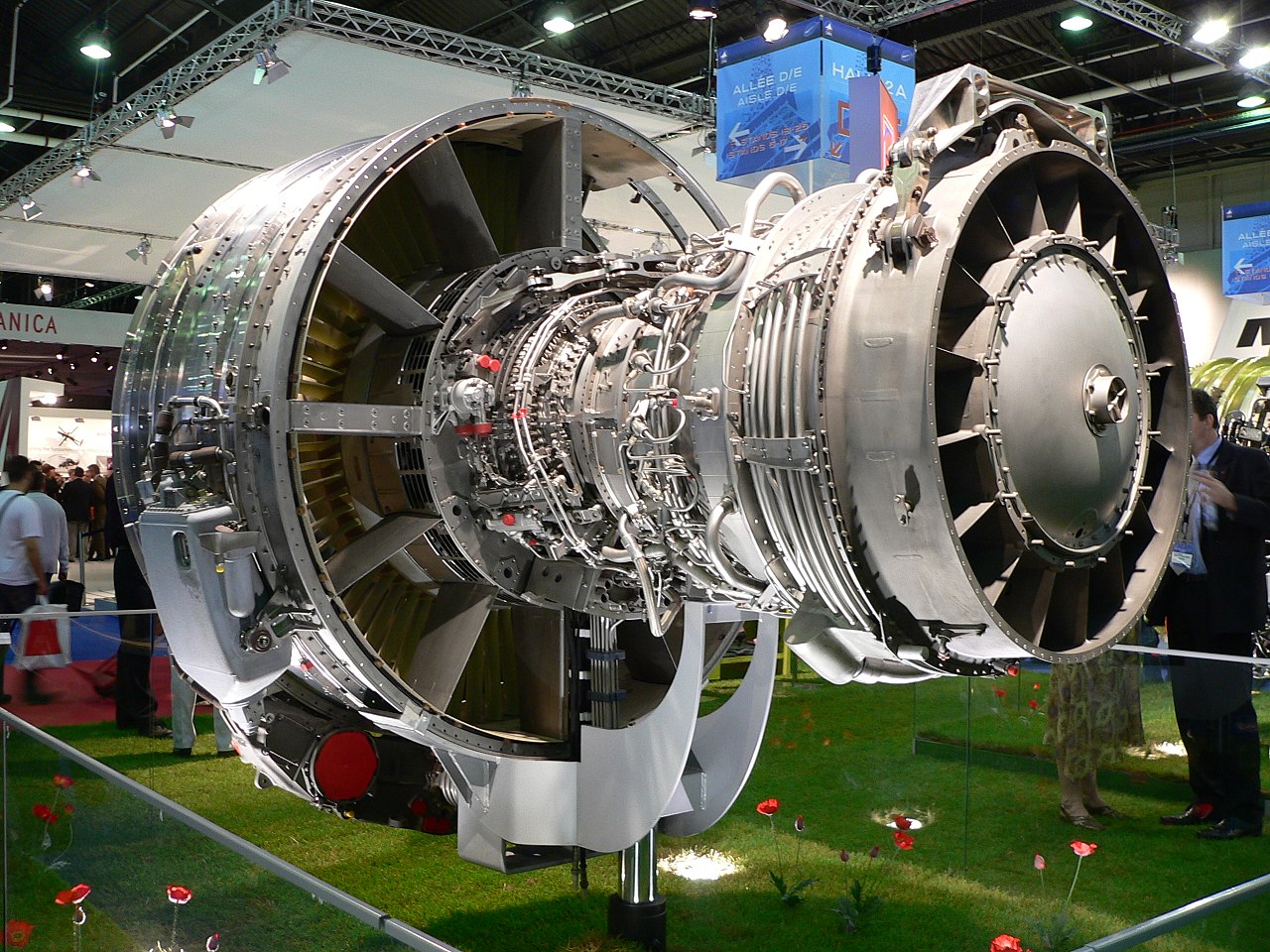

GE-Snecma CFM56-5B | An exposed jet engine at a trade show. The rear of the polished metal fan case is visible on the left. The outer casing of the compressor section, covered in fuel lines and electrical wires is to the right of the fan case. The right of the image shows the back of the engine, the exhaust area of the turbine section.

GE-Snecma CFM56-5B1 turbofan engine of 133.4 [KN] (29989 [lbf]) thrust

introduction : 1993 country : USA-France importance : ***

applications : Airbus A321-100

max. rating (take-off) : 133.4 [KN] (29989 [lbf], 13603 [kgf])

weight engine(s) dry : 2380.0 [kg] = 56.05 [N/kg]

General information :

by-pass ratio : 5.50 : 1

overall pressure ratio (OPR) : 35.4 : 1

rpm LP : 5000 [rpm]

rpm HP : 14460 [rpm]

axial flow engine

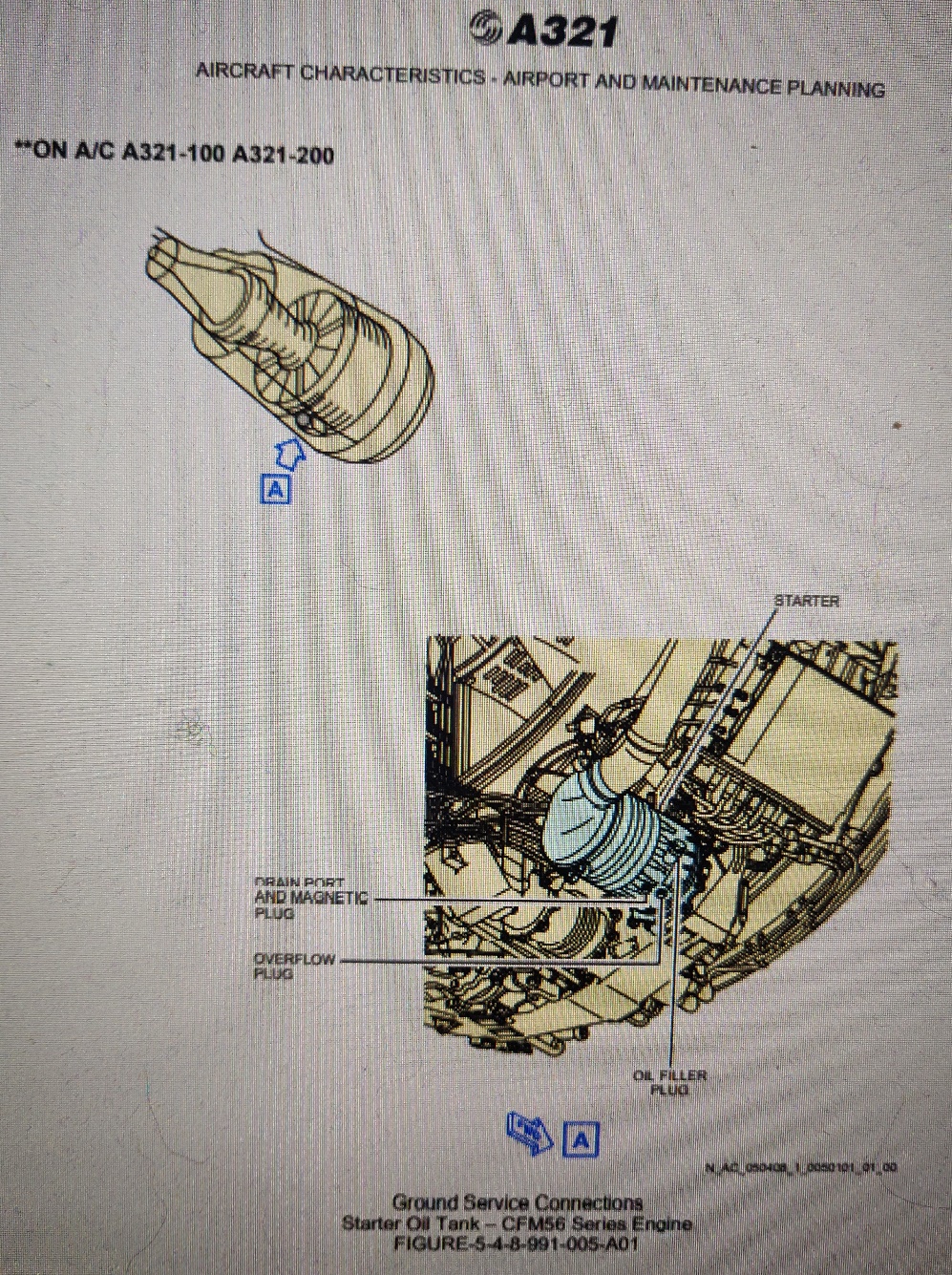

GE-Snecma CFM56-5B starter oil tank | ground service connections

no water injection

LP compressor stages : 5 [ ]

HP compressor stages : 9 [ ]

HP turbine stages : 1 [ ]

LP turbine stages : 4 [ ]

stages : 5 + 9 + 1 + 4

turbine inlet temperature : 0 [K]

fan diameter : 173.0 [cm] engine diameter : 191.0 [cm]

air mass flow : 380 [kg/s]

design hours : 692 [hr] time between overhaul : 346 [hr]

estimated specific fuel consumption (cruise power) :60.8 [kg/KNh]

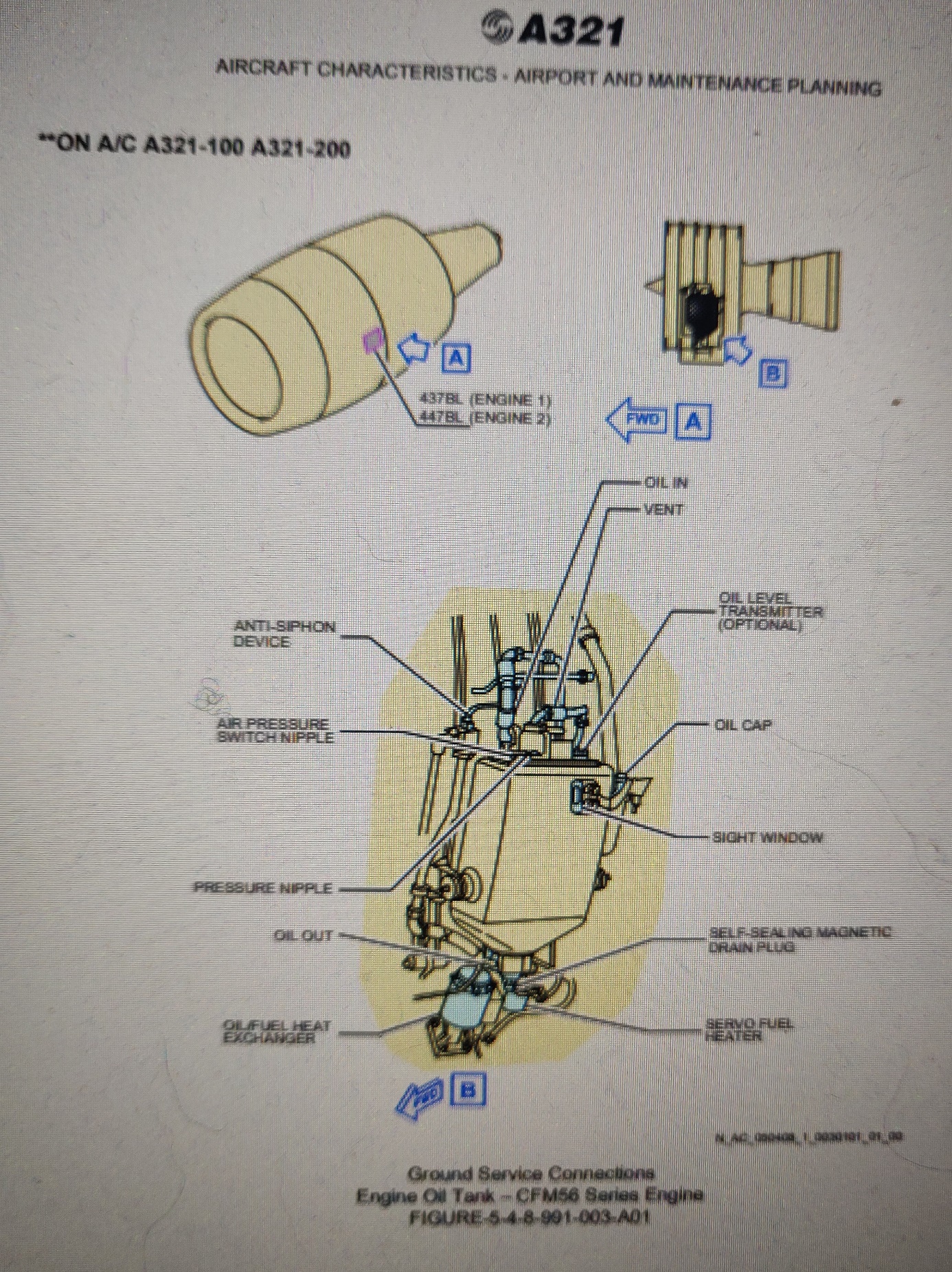

GE-Snecma CFM56-5B engine oil tank

Literature :

CFM International CFM56 - Wikipedia

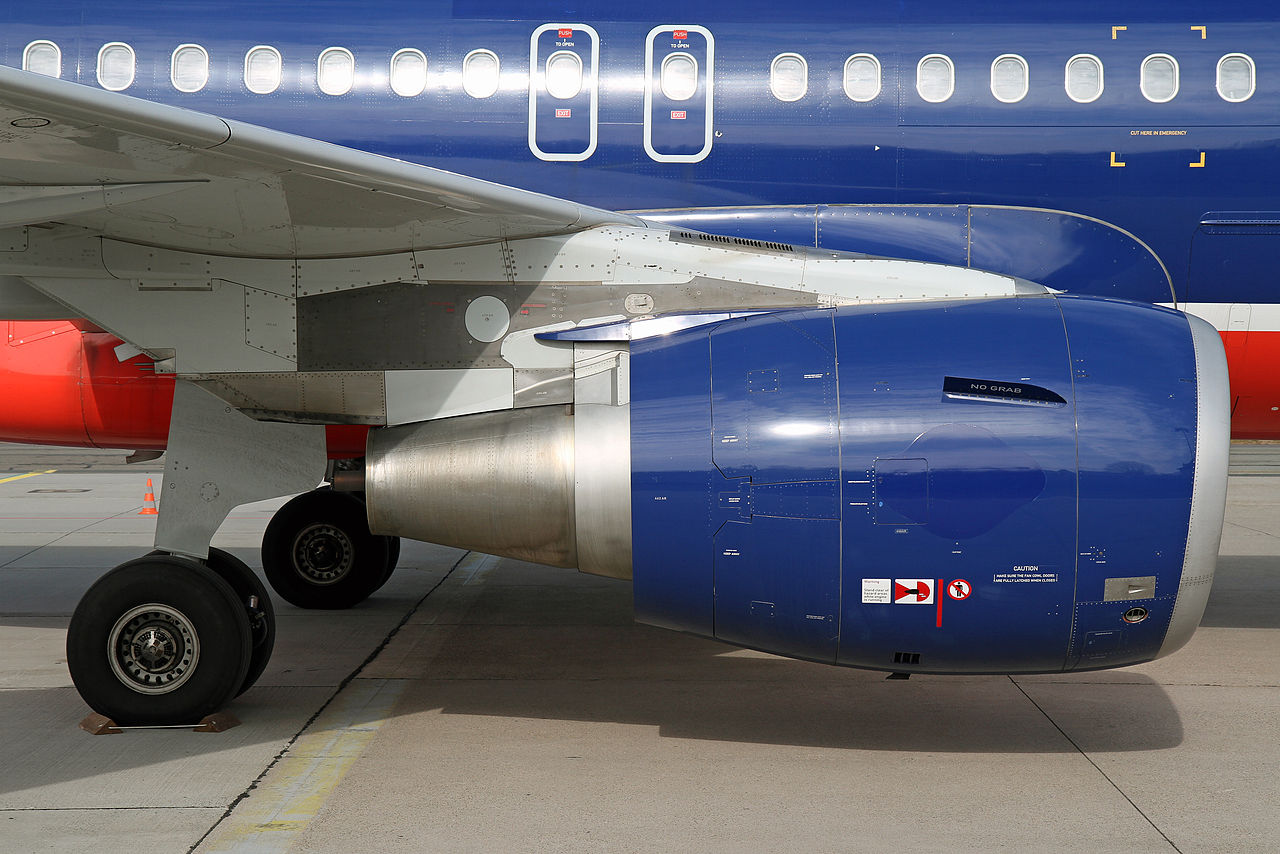

GE-Snecma CFM56-5B engine attached to the wing of a Airbus A319

CFM56-5B engine attached to an A319

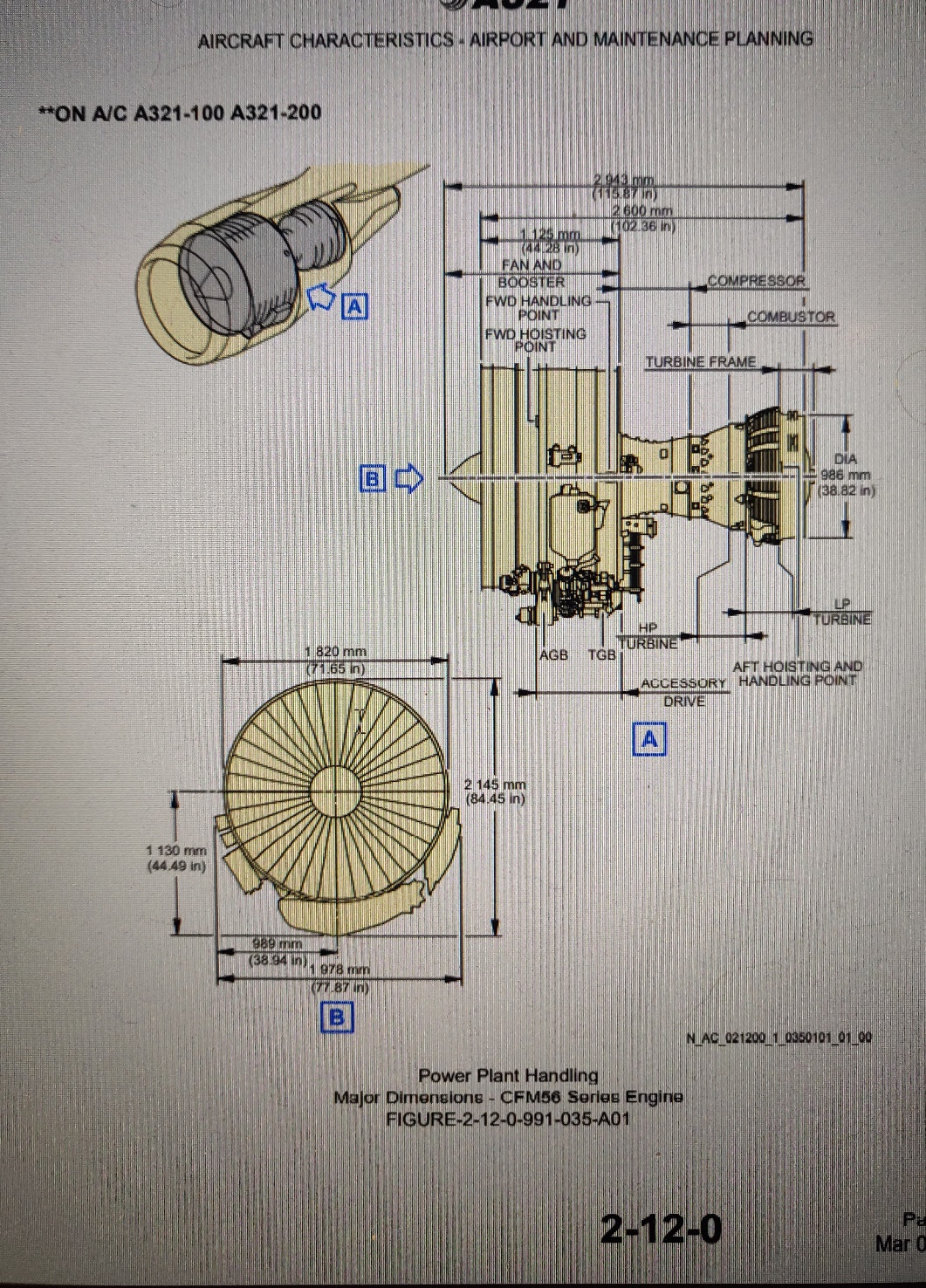

GE-Snecma CFM56-5B major dimensions drawing
