weight and performance calculations for the Northrop Delta
Northrop Delta
role : medium weight passenger aircraft
importance : ****
first flight : May 1933 operational : September 1933
country : United States of America
design : Jack Northrop
production : 32 aircraft (including 19 license built by Canadian Vickers)
general information :
low operating cost. Low drag co-efficient > nicely streamlined. New FAA regulations for single engine / single pilot passenger aircraft operating in the night or over rough terrain in October 1934 limited its use as passenger aircraft in the US.
Engines installed were the P&W Hornet or Wright Cyclone in different versions.
19 Delta’s were built by Canadian Vickers for the RCAF

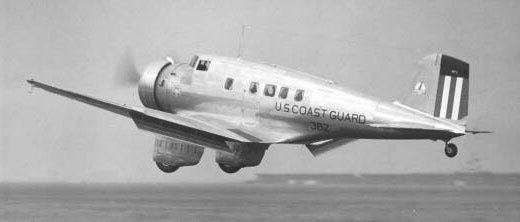

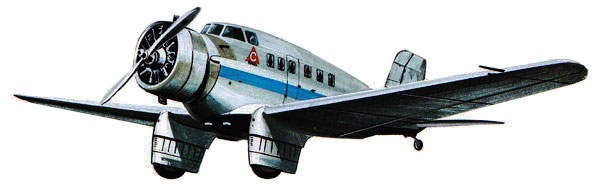

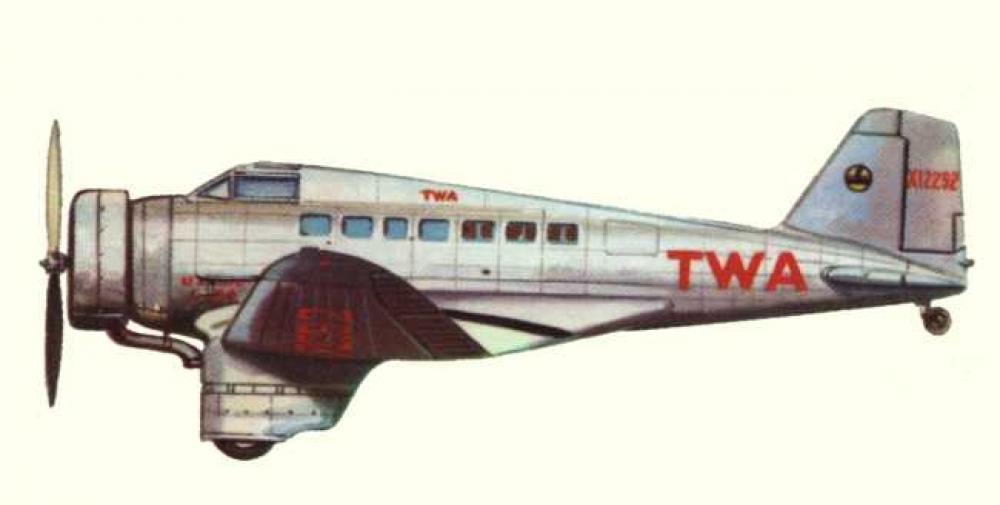

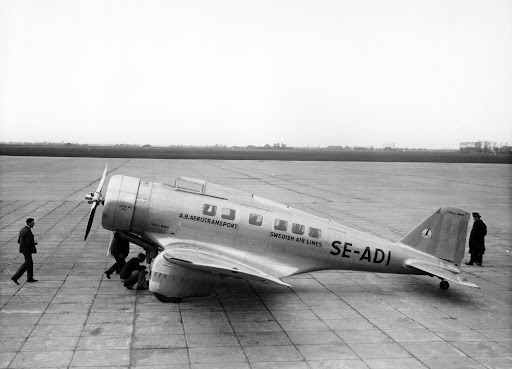

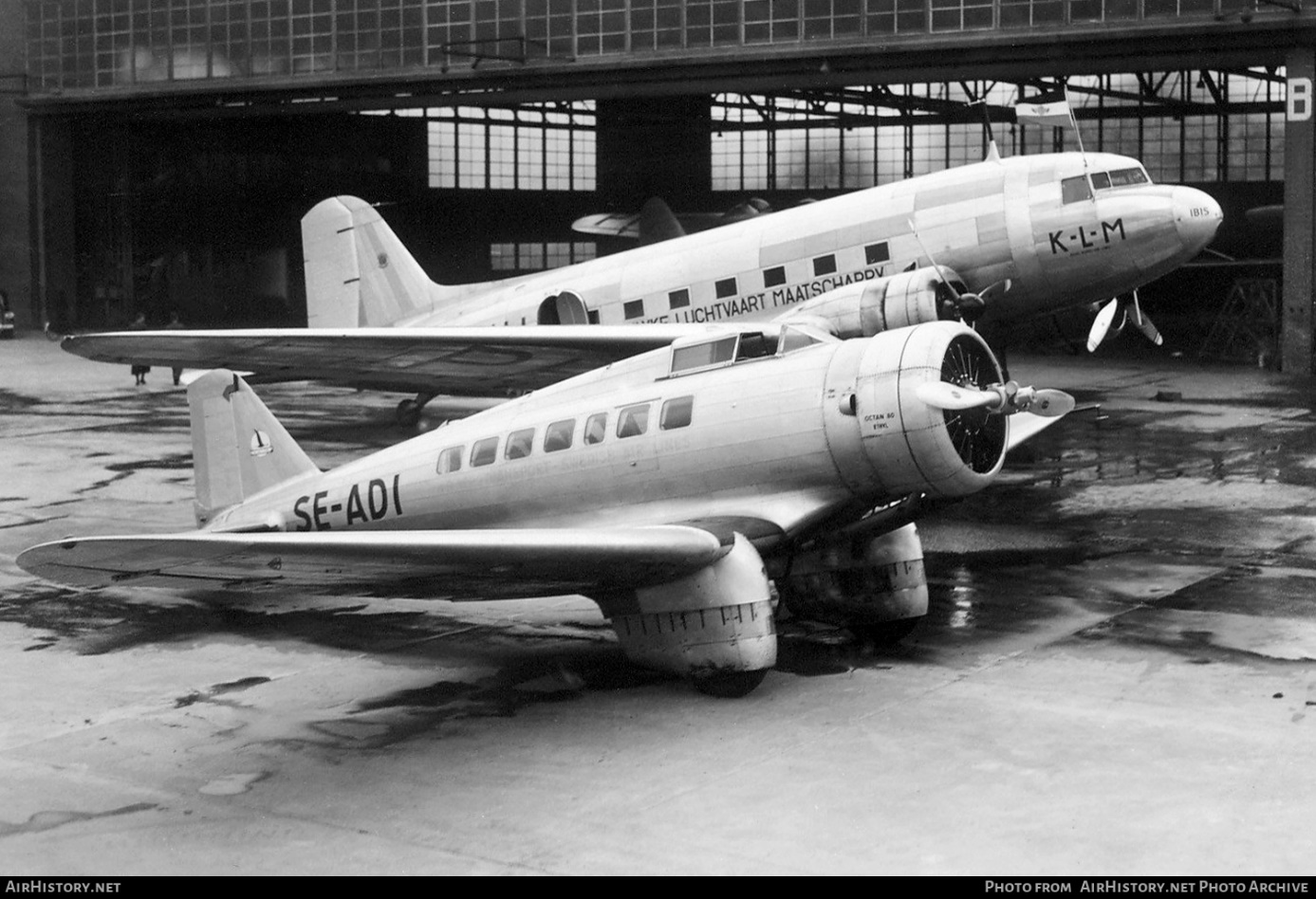

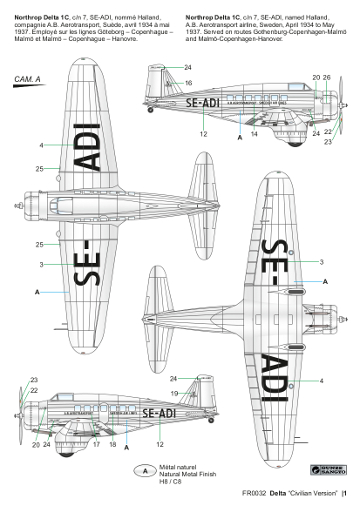

users : TWA, A.B. Aerotransport
crew : 1 passengers : 8
engine : 1 Wright SR-1820-F2 Cyclone air-cooled 9 -cylinder radial engine 660 [hp](492.2 KW)
without supercharger
dimensions :
wingspan : 14.55 [m], length : 10.08 [m], height : 3.07[m]
wing area : 33.7 [m^2]
weights :
max.take-off weight : 3334 [kg]
empty weight operational : 2059 [kg] useful load : 800 [kg]
performance :
maximum speed :297 [km/u] op 1920 [m]
cruise speed :282 [km/u] op 1920 [m]
service ceiling : 6095 [m]
range : 1250 [km]
description :
low-winged monoplane with fixed landing gear with tail wheel
tapered wing with split flap
engine in the nose, fuel tanks in the wing, landing gear attached to the wing
construction : all-metal stressed-skin (duraluminium) airplane
airscrew :
ground adjustable 2 -bladed metal Hamilton Standard tractor propeller with max.
efficiency :0.73 [ ]
estimated diameter airscrew 3.09 [m]
Chord at root (measured) : 2.89 [m]
power loading prop : 159.28 [KW/m]
prop efficiency ratio: 9.73 [1/s]
angle of attack prop : 19.21 [ ]
reduction : 1.00 [ ]
airscrew revs : 1950 [r.p.m.]
pitch at Max speed 2.54 [m]
blade-tip speed at Vmax and max revs. : 326 [m/s]
calculation : *1* (dimensions)
measured wing chord : 2.35 [m] at 50% wingspan
mean wing chord : 2.32 [m]
wing aspect ratio : 6.28 []
seize (span*length*height) : 450 [m^3]
calculation : *2* (fuel consumption)
oil consumption : 6.9 [kg/hr]
fuel consumption(cruise speed) : 105.5 [kg/hr] (143.9 [litre/hr]) at 58 [%] power
distance flown for 1 kg fuel : 2.67 [km/kg] at 3048 [m] height, sfc : 368.1 [kg/kwh]
estimated total fuel capacity : 724 [litre] (531 [kg])
calculation : *3* (weight)
weight engine(s) dry : 406.0 [kg] = 0.82 [kg/KW]
weight 53.1 litre oil tank : 4.52 [kg]
oil tank filled with 3.7 litre oil : 3.3 [kg]
The Delta used split flaps for better landing performance
oil in engine 2.7 litre oil : 2.5 [kg]
fuel in engine 3.4 litre fuel : 2.46 [kg]
weight 61.2 litre gravity patrol tank(s) : 9.2 [kg]
weight gas starter : 12.1 [kg]
weight NACA cowling 22.0 [kg]
weight airscrew(s) (wood) incl. boss & bolts : 48.7 [kg]
total weight propulsion system : 506 [kg](15.2 [%])
***************************************************************
fuselage aluminium frame : 271 [kg]
cabin layout : pitch : 87 [cm] (1+1) seating in 4.0 rows
weight toilet : 8 [kg]
weight 2 fire extinguisher : 6 [kg]
weight 8.0 windows : 7.20 [kg]
passenger cabin width : 1.40 [m] cabin length : 4.08 [m] cabin height : 1.80 [m]
cabin length / length : 40.5 [%]
weight cabin furbishing : 21.74 [kg]
weight cabin floor : 36.49 [kg]
fuselage covering ( 19.2 [m2] duraluminium 1.47 [mm]) : 71.1 [kg]
weight radio navigation equipment : 7.0 [kg]

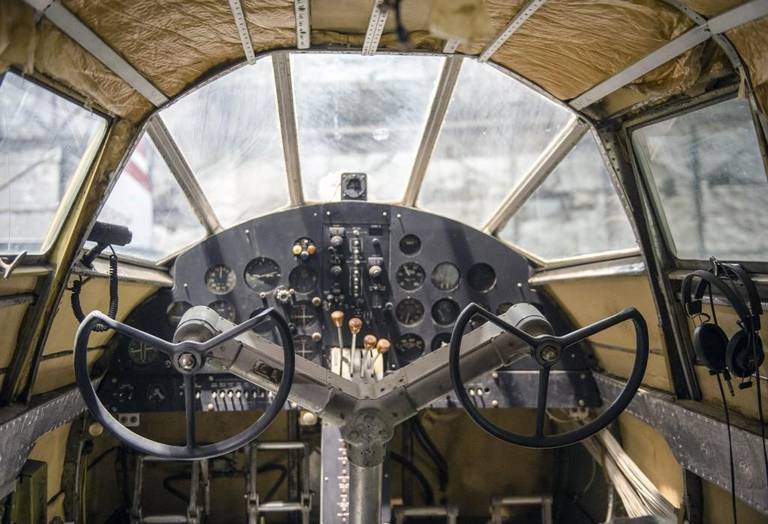

weight instruments. : 5.0 [kg]
weight lighting : 2.0 [kg]
weight electricity generator : 2.0 [kg]
weight controls : 5.6 [kg]
weight seats : 45.0 [kg]
weight air conditioning : 12 [kg]
weight engine mounts & firewalls : 25 [kg]
total weight fuselage : 522 [kg](15.7 [%])
***************************************************************
total weight aluminium ribs (74 ribs) : 119 [kg]
weight fuel tanks empty for total 663 [litre] fuel : 53 [kg]
weight wing covering (painted aluminium 1.54 [mm]) : 281 [kg]
load on front upper spar (clmax) per running metre : 2705.4 [N]
load on rear upper spar (vmax) per running metre : 698.4 [N]
total weight 4 aluminium spars : 200 [kg]
weight wings : 600 [kg]
weight wing/square meter : 17.82 [kg]
cantilever wing without bracing cables
weight rubber de-icing boots : 16.0 [kg]
weight fin & rudder (2.5 [m2]) : 44.1 [kg]
weight stabilizer & elevator (3.8 [m2]): 67.8 [kg]
weight split flap(1.7 [m2]) : 18.0 [kg]
total weight wing surfaces & bracing : 799 [kg] (24.0 [%])
*******************************************************************
wheel pressure : 1667.0 [kg]
weight 2 wheels (920 [mm] by 142 [mm]) : 81.0 [kg]
weight tailwheel(s) : 5.9 [kg]
weight undercarriage with axle 116.2 [kg]
total weight landing gear : 203.1 [kg] (6.1 [%]
*******************************************************************
********************************************************************
calculated empty weight : 2031 [kg](60.9 [%])
weight oil for 5.3 hours flying : 36.7 [kg]
calculated operational weight empty : 2068 [kg] (62.0 [%])
published operational weight empty : 2059 [kg] (61.8 [%])
___o___
‘ ‘
weight crew : 81 [kg]
weight fuel for 2.0 hours flying : 211 [kg]
********************************************************************
operational weight empty: 2360 [kg](70.8 [%])
weight 8 passengers : 616 [kg]
weight luggage & freight : 184 [kg]
operational weight loaded: 3160 [kg](94.8 [%])
fuel reserve : 174.5 [kg] enough for 1.65 [hours] flying
operational weight fully loaded : 3334 [kg] with fuel tank filled for 73 [%]
published maximum take-off weight : 3334 [kg] (100.0 [%])
calculation : * 4 * (engine power)
power loading (Take-off) : 6.77 [kg/kW]
power loading (operational without useful load) : 4.79 [kg/kW]
total power : 492.2 [kW] at 1950 [r.p.m]
calculation : *5* (loads)
manoeuvre load : 5.1 [g] at 1000 [m]
limit load : 3.0 [g] ultimate load : 4.5 [g] load factor : 2.9 [g]
design flight time : 3.55 [hours]
design cycles : 10858 sorties, design hours : 38502 [hours]
operational wing loading : 687 [N/m^2]
wing stress (3 g) during operation : 116 [N/kg] at 3g emergency manoeuvre
calculation : *6* (angles of attack)
angle of attack zero lift : -1.87 ["]
max. angle of attack (stalling angle) : 14.30 ["]
angle of attack at max. speed : 0.61 ["]
calculation : *7* (lift & drag ratios
lift coefficient at angle of attack 0° : 0.15 [ ]
lift coefficient at max. angle of attack : 1.30 [ ]
max.lift coefficient full flaps : 1.37 [ ]
lift coefficient at max. speed : 0.20 [ ]
induced drag coefficient at max. speed : 0.0027 [ ]
drag coefficient at max. speed : 0.0286 [ ]
drag coefficient (zero lift) : 0.0259 [ ]
calculation : *8* (speeds
stalling speed at sea-level (OW loaded : 3229 [kg]): 124 [km/u]
stalling speed at sea-level with full flaps : 121 [km/u]
landing speed at sea-level : 142 [km/hr]
min. drag speed (max endurance) : 208 [km/hr] at 3048 [m](power :43 [%])
min. power speed (max range) : 208 [km/hr] at 3048 [m] (power:43 [%])
max. rate of climb speed : 186.7 [km/hr] at sea-level
cruising speed : 282 [km/hr] at 3048 [m] (power:69 [%])
design speed prop : 289 [km/hr]
maximum speed : 297 [km/hr] at 1920 [m] (power:83 [%])
climbing speed at sea-level (loaded) : 342 [m/min]
calculation : *9* (regarding various performances)
take-off speed : 151.0 [km/u]
emergency/TO power : 735 [hp] at 2122 [rpm]
static prop wash : 177 [km/u]
take-off distance at sea-level : 265 [m]
lift/drag ratio : 11.95 [ ]
climb to 1000m with max payload : 3.81 [min]
climb to 2000m with max payload : 9.10 [min]
climb to 3000m with max payload : 16.20 [min]
practical ceiling (operational weight 2360 [kg] ) : 6478 [m]
practical ceiling fully loaded (mtow- 30 min.fuel:3281 [kg] ) : 4703 [m]
calculation *10* (action radius & endurance)
published range : 1250 [km] with 1 crew and 717.8 [kg] useful load and 88.1 [%] fuel
range : 1030 [km] with 1 crew and 800.0 [kg] useful load and 72.6 [%] fuel
range : 1308 [km] with 8.0 passengers with each 10 [kg] luggage and 92.2 [%] fuel
Available Seat Kilometres (ASK) : 10467 [paskm]
max range theoretically with additional fuel tanks total 1617.3 [litre] fuel : 3169 [km]
useful load with range 500km : 998 [kg]
useful load with range 500km : 8 passengers
production (useful load): 281.55 [tonkm/hour]
production (passengers): 2256.00 [paskm/hour]
oil and fuel consumption per tonkm : 0.40 [kg]
oil and fuel consumption per paskm : 0.04 [kg]
fuel cost per paskm : 0.04 [eur]
crew cost per paskm : 0.05 [eur]
economic hours : 12775 [hours] is less then design hours
time between engine failure : 135 [hr]
in case of engine failure only option is emergency landing
writing off per paskm : 0.05 [eur]
insurance per paskm : 0.05 [eur]
maintenance cost per paskm : 0.13 [eur]
direct operating cost per paskm : 0.33 [eur]
direct operating cost per tonkm : 3.27 [eur]
Literature :
Piston-engined airliners page 29
Praktisch handboek vliegtuigen deel 2 page 255
DISCLAIMER Above calculations are based on published data, they must be
regarded as indication not as facts.
