weight and performance calculations for the Northrop Alpha 2

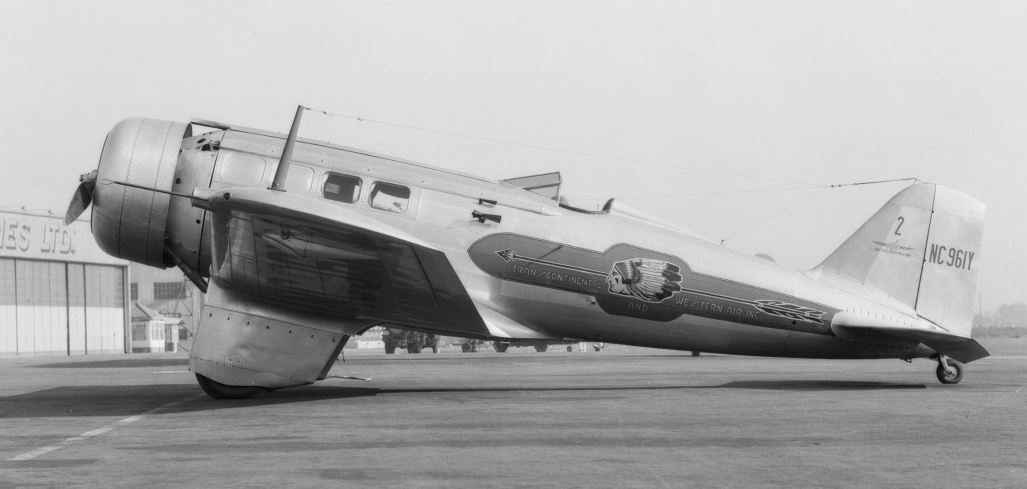

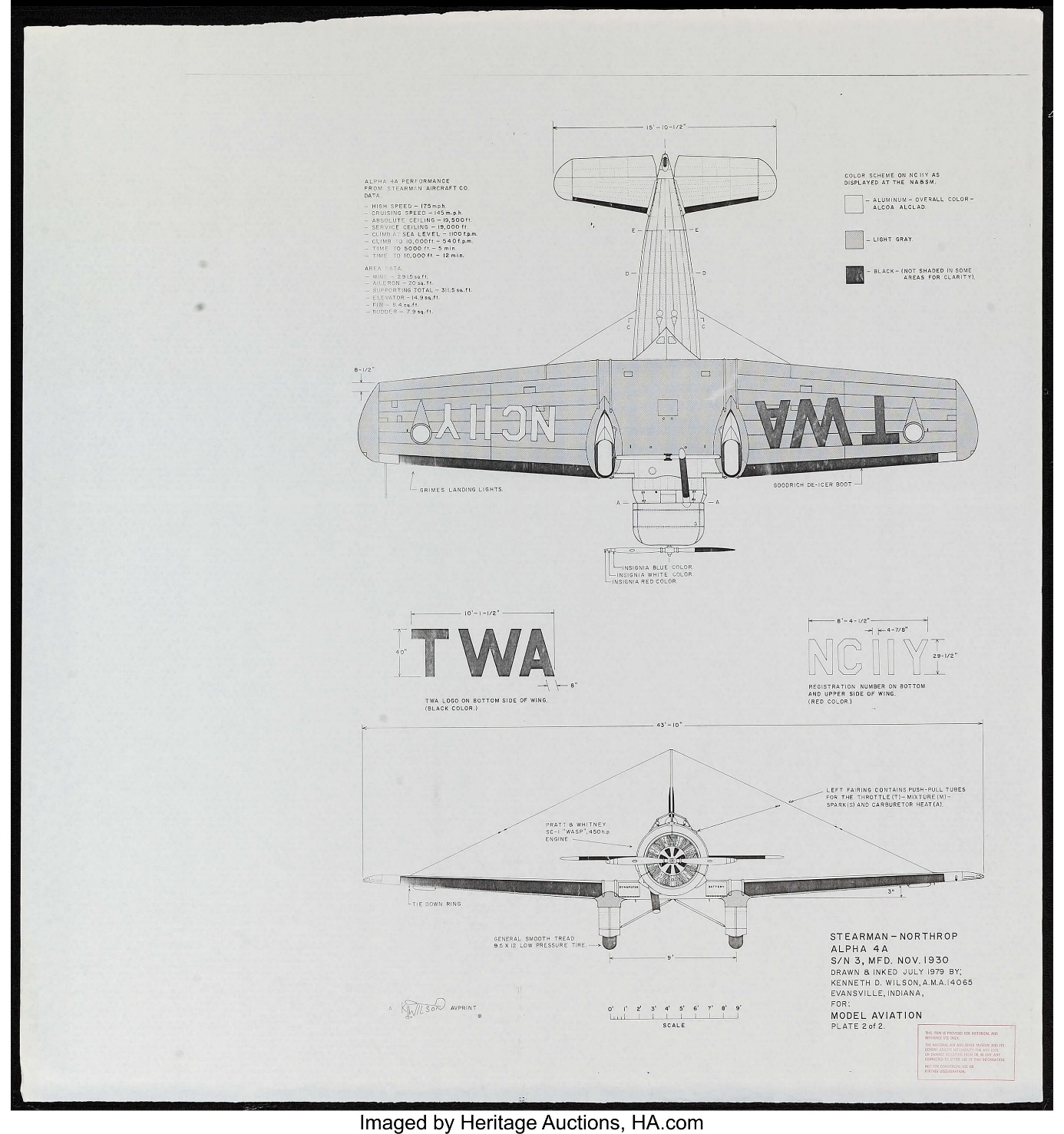

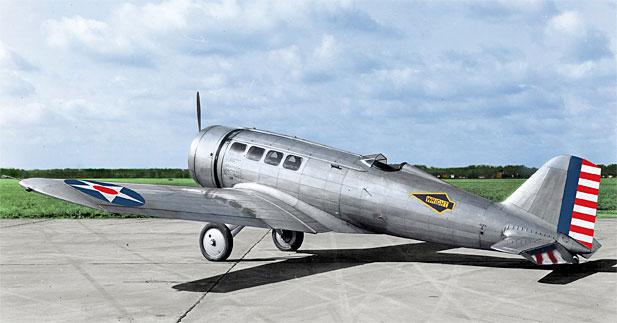

Northrop Alpha 2
role : medium weight passenger aircraft
importance : **
first flight : operational : April 1931
country : United States of America
design : John K. Northrop
production : 17 aircraft at Burbank, California
General information :

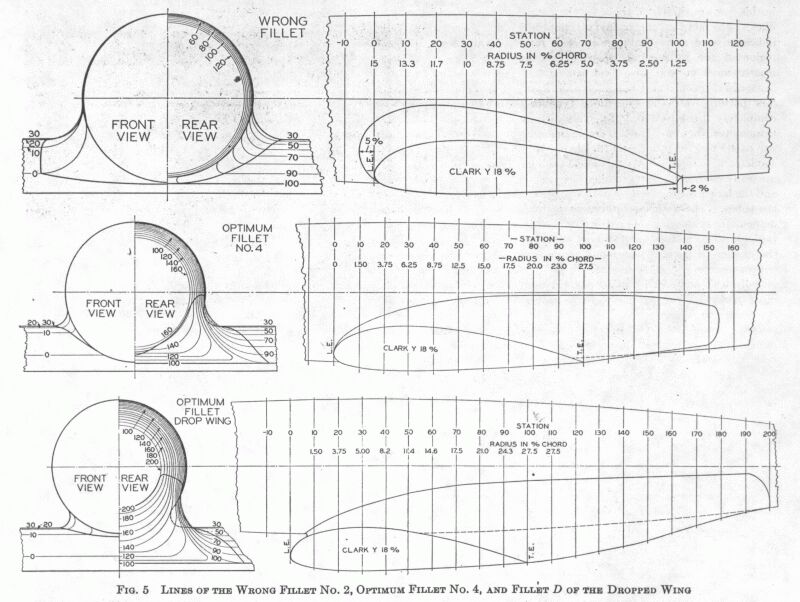

Airfoil : Clark Y (18% at root, 12% at tip) Useful load (fuel & payload) : 868 kg
Landing speed : 96.5 km/hr climb at sea level : 427 m/min, time to 3048m : 10.5 min
Absolute ceiling : 6431m take-off ground roll : 163m landing ground roll : 145m
Fuel capacity : 116 gallon = 439 litre oil : 13 gallon = 49.2 litre
Blower ratio 10:1
users : TWA
crew : 1 passengers : 6
engine : 1 Pratt & Whitney R-1340-SC1 Wasp air-cooled 9 -cylinder radial engine 450
[hp] (335.6 KW) supercharged engine, constant power to height : 1828 [m]
dimensions :
wingspan : 12.8 [m], length : 8.7 [m], height : 2.7[m]
wing area : 27.4 [m^2]
weights :
max.take-off weight : 2045 [kg]
empty weight operational : 1177 [kg] useful load : 600 [kg]
performance :
maximum speed :285 [km/u] op 1800 [m]
cruise speed :256 [km/u] op 1800 [m]
service ceiling : 5885 [m]
range : 939 [km]
description :

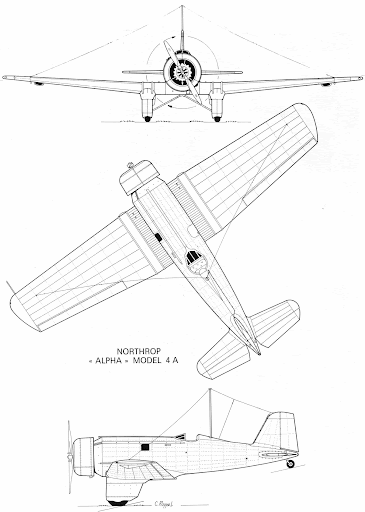

low-winged monoplane with fixed landing gear with tail wheel
tapered wing
engine in the nose, fuel tanks in the wing, landing gear attached to the wing
construction : all-metal (duraluminium) airplane
airscrew :
ground adjustable 2 -bladed metal Hamilton Standard tractor propeller with max.
efficiency :0.72 [ ]
estimated diameter airscrew 2.64 [m]
power loading prop : 127.11 [KW/m]
prop efficiency ratio: 11.99 [1/s]
angle of attack prop : 19.56 [ ]
reduction : 1.00 [ ]
airscrew revs : 2150 [r.p.m.]
pitch at Max speed 2.21 [m]
blade-tip speed at Vmax and max revs. : 308 [m/s]
calculation : *1* (dimensions)
measured wing chord : 2.13 [m] at 50% wingspan
mean wing chord : 2.14 [m]
wing aspect ratio : 5.98 []
seize (span*length*height) : 301 [m^3]
calculation : *2* (fuel consumption)
oil consumption : 6.0 [kg/hr]
fuel consumption(cruise speed) : 77.4 [kg/hr] (105.6 [litre/hr]) at 75 [%] power
distance flown for 1 kg fuel : 3.31 [km/kg] at 2942 [m] height, sfc : 307.2 [kg/kwh]
estimated total fuel capacity : 439 [litre] (322 [kg])
calculation : *3* (weight)
weight engine(s) dry : 324.0 [kg] = 0.97 [kg/KW]
weight 37.9 litre oil tank : 3.23 [kg]
oil tank filled with 2.5 litre oil : 2.3 [kg]
oil in engine 1.9 litre oil : 1.7 [kg]
fuel in engine 2.3 litre fuel : 1.68 [kg]
weight 44.9 litre gravity patrol tank(s) : 6.7 [kg]
weight gas starter : 8.2 [kg]
weight cowling (Townend ring) 13.4 [kg]
weight airscrew(s) (wood) incl. boss & bolts : 26.4 [kg]
total weight propulsion system : 384 [kg](18.8 [%])
***************************************************************
fuselage aluminium frame : 119 [kg]
cabin layout : pitch : 87 [cm] (1+1) seating in 3.0 rows
weight 1 fire extinguisher : 3 [kg]
weight 6.0 windows : 5.40 [kg]
passenger cabin width : 1.23 [m] cabin length : 2.61 [m] cabin height : 1.80 [m]
weight cabin furbishing : 11.71 [kg]
weight cabin floor : 20.61 [kg]
fuselage covering ( 14.3 [m2] duraluminium0.70 [mm]) : 25.2 [kg]
weight radio navigation equipment : 6.0 [kg]
weight instruments. : 5.0 [kg]
weight lighting : 1.5 [kg]
weight controls : 5.0 [kg]
weight seats : 35.0 [kg]
weight air conditioning : 9 [kg]
weight engine mounts & firewalls : 17 [kg]
total weight fuselage : 250 [kg](12.2 [%])
***************************************************************
total weight aluminium ribs (49 ribs) : 73 [kg]
weight fuel tanks empty for total 394 [litre] fuel : 32 [kg]
weight wing covering (painted aluminium 0.96 [mm]) : 142 [kg]
load on front upper spar (clmax) per running metre : 1553.6 [N]
load on rear upper spar (vmax) per running metre : 484.3 [N]
total weight 4 aluminium spars : 90 [kg]
weight wings : 305 [kg]
weight wing/square meter : 11.12 [kg]
cantilever wing without bracing cables
weight rubber de-icing boots : 14.1 [kg]
weight fin & rudder (1.9 [m2]) : 21.4 [kg]
weight stabilizer & elevator (3.1 [m2]): 34.5 [kg]
total weight wing surfaces & bracing : 406 [kg] (19.9 [%])
*******************************************************************
wheel pressure : 1022.5 [kg]
weight 2 wheels (790 [mm] by 156 [mm]) : 42.3 [kg]
weight tailwheel(s) : 5.9 [kg]
weight undercarriage with axle 67.9 [kg]
total weight landing gear : 116.1 [kg] (5.7 [%]
*******************************************************************
********************************************************************
calculated empty weight : 1157 [kg](56.6 [%])
weight oil for 4.4 hours flying : 26.5 [kg]
calculated operational weight empty : 1184 [kg] (57.9 [%])
published operational weight empty : 1177 [kg] (57.6 [%])
___o___
"
weight crew : 81 [kg]
weight fuel for 2.0 hours flying : 155 [kg]
********************************************************************
operational weight empty: 1420 [kg](69.4 [%])
weight 6 passengers : 462 [kg]
weight luggage & freight : 138 [kg]
operational weight loaded: 2020 [kg](98.8 [%])
fuel reserve : 25.5 [kg] enough for 0.33 [hours] flying
operational weight fully loaded : 2045 [kg] with fuel tank filled for 56 [%]
published maximum take-off weight : 2045 [kg] (100.0 [%])
calculation : * 4 * (engine power)
power loading (Take-off) : 6.09 [kg/kW]
power loading (operational without useful load) : 4.23 [kg/kW]
total power : 335.6 [kW] at 2150 [r.p.m]
calculation : *5* (loads)
manoeuvre load : 6.3 [g] at 1000 [m]
limit load : 3.0 [g] ultimate load : 4.5 [g] load factor : 2.4 [g]
design flight time : 2.93 [hours]
design cycles : 7374 sorties, design hours : 21595 [hours]
operational wing loading : 508 [N/m^2]
wing stress (3 g) during operation : 137 [N/kg] at 3g emergency manoeuvre
calculation : *6* (angles of attack)
angle of attack zero lift : -1.90 ["]
max. angle of attack (stalling angle) : 14.41 ["]
angle of attack at max. speed : 0.10 ["]

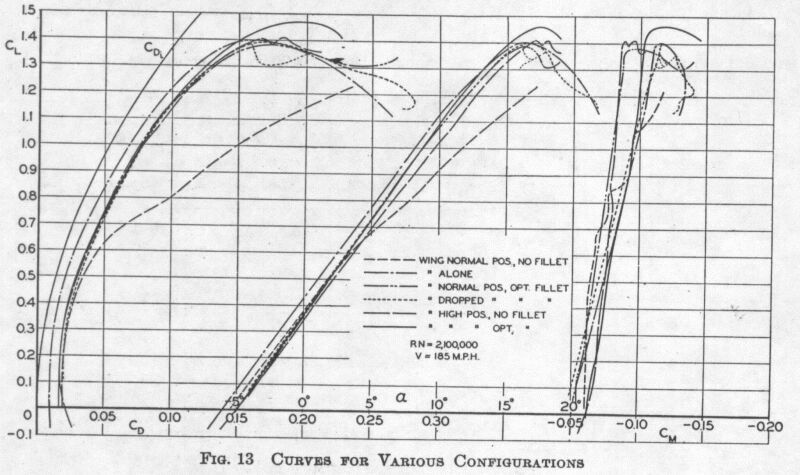

calculation : *7* (lift & drag ratios
lift coefficient at angle of attack 0° :0.15 [ ]
lift coefficient at max. angle of attack : 1.29 [ ]
lift coefficient at max. speed : 0.16 [ ]
induced drag coefficient at max. speed : 0.0018 [ ]
drag coefficient at max. speed : 0.0344 [ ]
drag coefficient (zero lift) : 0.0327 [ ]
calculation : *8* (speeds
stalling speed at sea-level (OW loaded : 1968 [kg]): 108 [km/u]
landing speed at sea-level: 126 [km/hr]
min. drag speed (max endurance) : 172 [km/hr] at 2942 [m](power :37 [%])
min. power speed (max range) : 172 [km/hr] at 2942 [m] (power:37 [%])
max. rate of climb speed : 162.9 [km/hr] at sea-level
cruising speed : 256 [km/hr] at 2942 [m] (power:76 [%])
design speed prop : 271 [km/hr]
maximum speed : 285 [km/hr] at 1800 [m] (power:105 [%])
climbing speed at sea-level (loaded) : 349 [m/min]
calculation : *9* (regarding various performances)
take-off speed : 131.6 [km/u]
static prop wash : 152 [km/u]
start time : 10 [s]
take-off distance at sea-level : 198 [m]
lift/drag ratio : 10.38 [ ]
climb to 1000m with max payload : 2.90 [min]
climb to 2000m with max payload : 5.83 [min]
climb to 3000m with max payload : 9.31 [min]
practical ceiling (operational weight 1420 [kg] ) : 7293 [m]
practical ceiling fully loaded (mtow- 30 min.fuel:2006 [kg] ) : 5883 [m]
calculation *10* (action radius & endurance)
published range : 939 [km] with 1 crew and 496.9 [kg] useful load and 88.1 [%] fuel
range : 597 [km] with 1 crew and 600.0 [kg] useful load and 56.1 [%] fuel
range : 856 [km] with 6.0 passengers with each 10 [kg] luggage and 80.3 [%] fuel
Available Seat Kilometres (ASK) : 5136 [paskm]
max range theoretically with additional fuel tanks total 1064.5 [litre] fuel : 2586 [km]
useful load with range 500km : 629 [kg]
useful load with range 500km : 6 passengers
production (useful load): 161.45 [tonkm/hour]
production (passengers): 1539.00 [paskm/hour]
oil and fuel consumption per tonkm : 0.52 [kg]
fuel cost per paskm : 0.05 [eur]
crew cost per paskm : 0.09 [eur]
economic hours : 12775 [hours] is less then design hours
time between engine failure : 170 [hr]
writing off per paskm : 0.05 [eur]
insurance per paskm : 0.05 [eur]
maintenance cost per paskm : 0.22 [eur]
direct operating cost per paskm : 0.46 [eur]
direct operating cost per tonkm : 4.64 [eur]
Literature :
Piston-engined airliners page
Northrop Alpha - Holcomb's Aerodrome (airminded.net)
