performance calculations for the Le Rhone 9c WWI aero engine
Le Rhone 9c air-cooled 9 -cylinder two-valve rotary engine 90 [hp](66.2 KW)
introduction : April 1915 country : France importance : *****
applications : Nieuport 11, Sopwith Pup, Caudron G.IV
normal rating : 90 [hp](66.2 KW) at 1300 [rpm] at 0 [m] above sea level
no reduction, direct drive, valvetrain :
weight engine(s) dry : 122.0 [kg] = 1.84 [kg/KW]
bore : 105.0 [mm] stroke : 140.0 [mm]
Mechanical efficiency/mean pressure correction factor : 0.705 [ ]
valve inlet area : 12.2 [cm^2] one inlet and one outlet valve in the cylinder head
gasspeed at inlet valve : 30.3 [m/s]
invloed hoogte > cm : 0.34 [ ]
compression ratio: 4.50 :1
calculated compression ratio : 4.50 : 1
published volume (displacement): 10.890 [litre]
calculated stroke volume (Vs) : 10.910 [litre]
compression volume (Vc): 3.117 [litre]
total volume (Vt): 14.028 [litre]
power / stroke volume (litervermogen Nl): 6.1 [kW/litre]
torque : 486 [Nm]
engine weight/volume : 11.2 : [kg/litre]
average piston speed (Cm): 6.1 [m/s]
***************************************************************************
intake pressure at 0 [m] altitude Pi : 0.99 [kg/cm2]
mean engine pressure (M.E.P.) at 0 [m] altitude Pm : 5.36 [kg/cm2]
compression pressure at 0 [m] altitude Pc: 6.83 [kg/cm2]
estimated combustion pressure at 0 [m] Pe : 27.34 [kg/cm2]
exhaust pressure at 0 [m] Pu : 3.97 [kg/cm^2 ]
**************************************************************************
compression-end temperature at 0 [m] Tc: 561 [°K] (288 [°C])
caloric combustion temperature at 0 [m] Tec: 2153 [°K] (1880 [°C])
polytroph combustion temperature at 0 [m] Te (T4): 2239 [°K] (1965 [°C])
exhaust temperature at 0 [m] Tu: 1262 [°K] (989 [°C])
*********************************************************************************
emergency/TO rating can be increased with higher [rpm}
(emergency/take off) rating at 1424 [rpm] at sea level : 99 [pk]
Thermal efficiency Nth : 0.313 [ ]
Mechanical efficiency Nm : 0.662 [ ]
Thermo-dynamic efficiency Ntd : 0.208 [ ]
design hours : 1218 time between overhaul : 134
fuel consumption optimum mixture at 1300.00 [rpm] at 0 [m]: 31.82 [kg/hr]
specific fuel consumption thermo-dynamic : 305 [gr/epk] = 414 [gr/kwh]
specific fuel consumption (cruise power) at 0 [m] optimum mixture : 420 [gr/kwh]
estimated sfc (cruise power) at 2286 [m] rich mixture : 431 [gr/kwh]
specific fuel consumption at 0 [m] at 1300 [rpm] optimum mixture : 481 [gr/kwh]
estimated specific oil consumption (cruise power) : 65 [gr/kwh]
Literature :
DISCLAIMER Above calculations are based on published data, they must be
regarded as indication not as facts.
Calculated performance and weight may not correspond with actual weights
and performances and are assumptions for which no responsibility can be taken.
Calculations are as accurate as possible, they can be fine-tuned when more data
is available, you are welcome to give suggestions and additional information
so we can improve our program. For copyright on drawings/photographs/
content please mail to below mail address

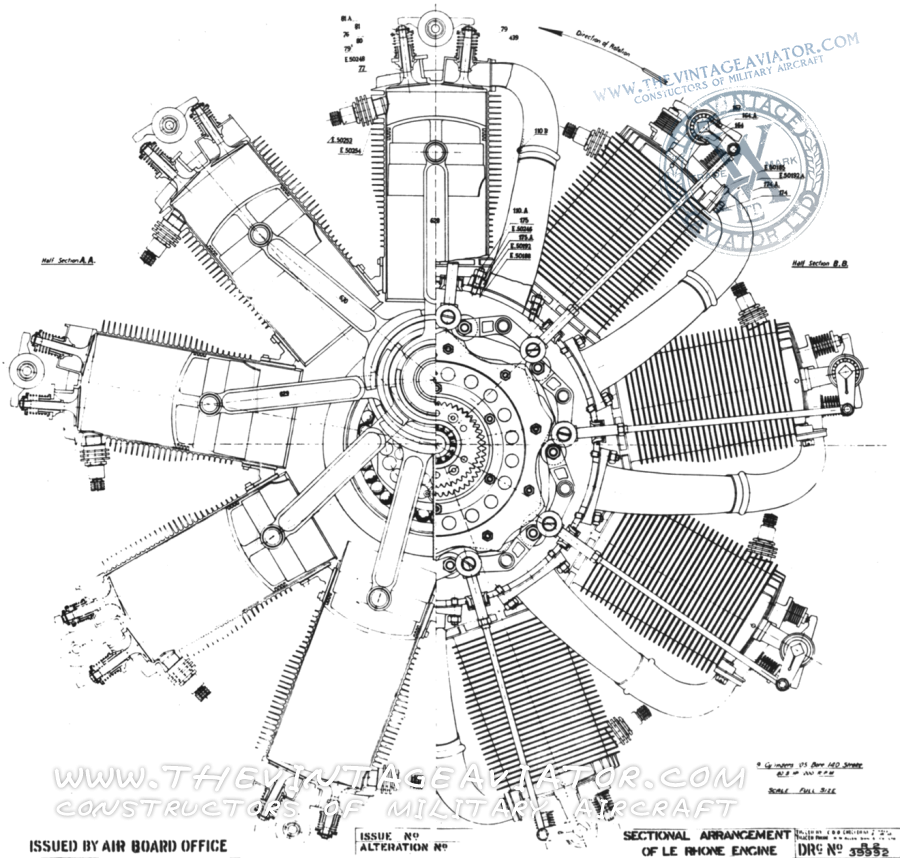

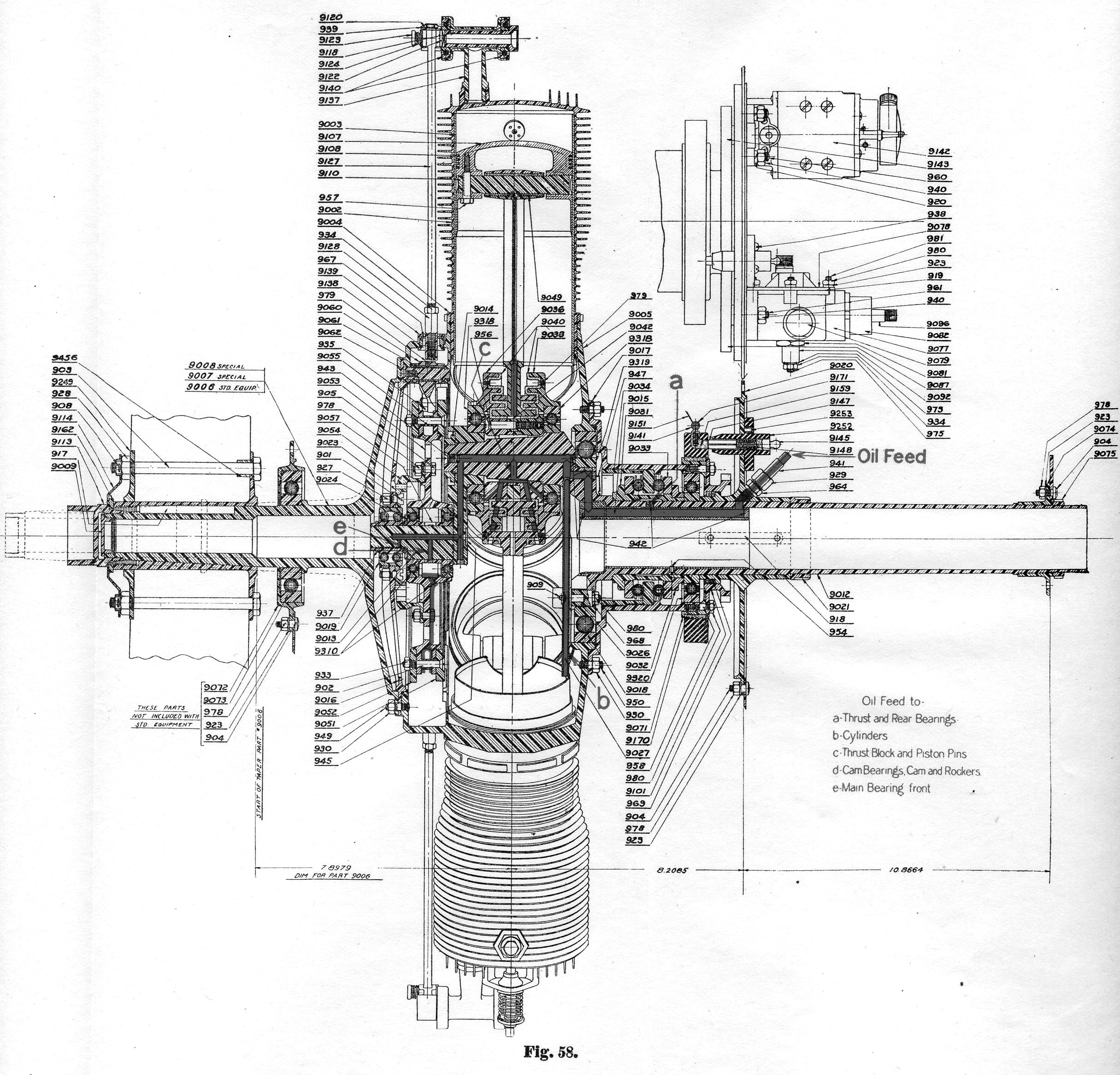

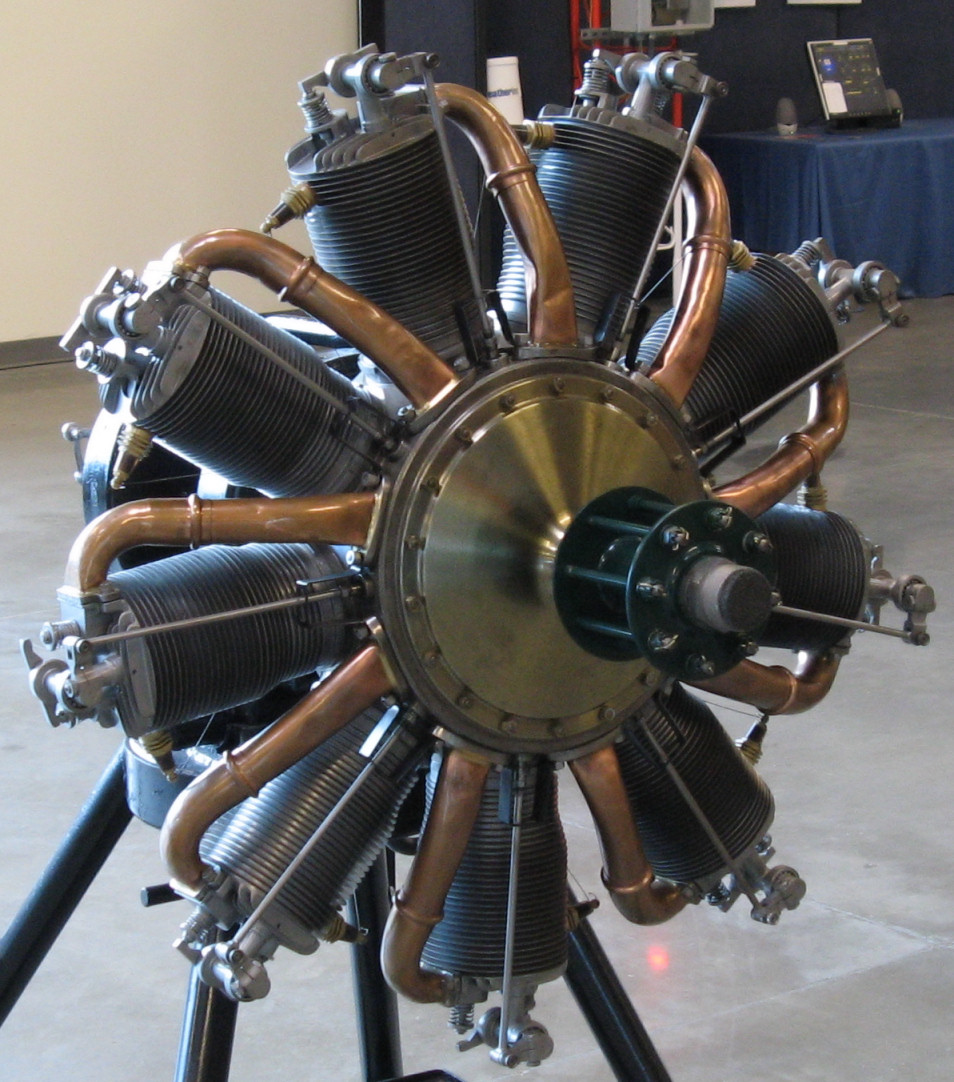

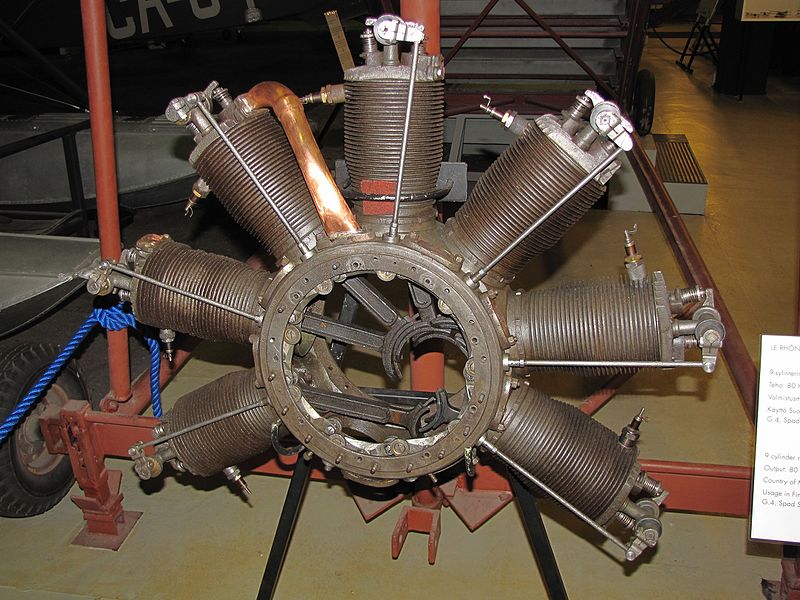

Le Rhone 9 in the Finnish aviation museum
(c) B van der Zalm 23 March 2020 contact : info.aircraftinvestigation@gmail.com python 3.7.4
