performance calculations for the Junkers L5 aircraft engine

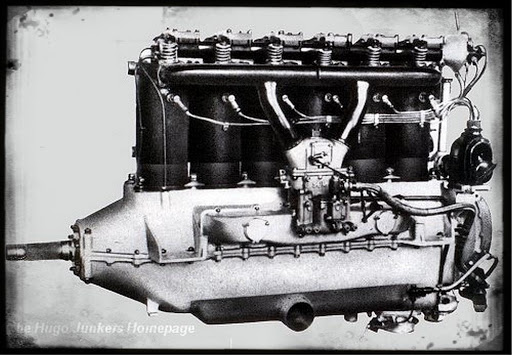

Junkers L5 liquid-cooled 6 -cylinder inline engine 310 [hp](231.2 KW)
German engine rating : 314.3 [PS]
introduction : 1926 country : Germany importance : ***
applications : Junkers G.24 , Junkers W.33
normal rating : 310 [hp](231.2 KW) at 1425 [rpm] at 0 [m] above sea level
no reduction, direct drive, valvetrain : SOHC

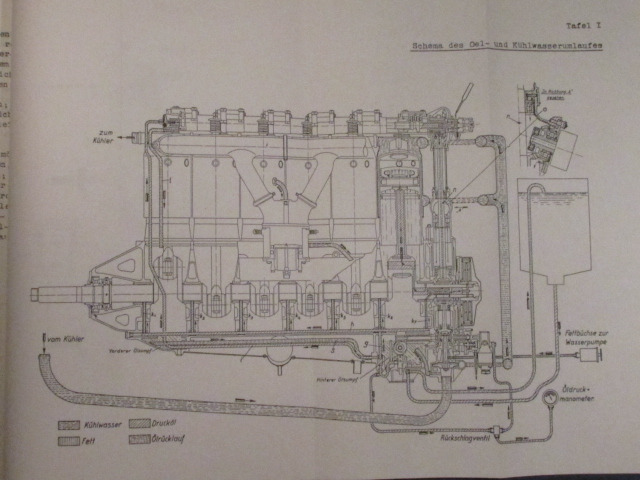

fuel system : single float, dual venturi carburettor oil system : forced recirculation
weight engine(s) dry : 334.0 [kg] = 1.44 [kg/KW]
bore : 160.0 [mm] stroke : 190.0 [mm]
valve inlet area : 39.1 [cm^2] one inlet and one exhaust valve in cylinder head
gasspeed at inlet valve : 32.7 [m/s]
throttle : 90 /100 open, mixture :13.0 :1
compression ratio: 5.50 :1
calculated compression ratio : 5.50 : 1
stroke volume (displacement): 22.920 [litre]
compression volume (Vc): 5.094 [litre]
total volume (Vt): 28.01 [litre]
engine height : 112 [cm]
engine length: 0.00 [m]
specific power : 10.1 [kW/litre]
torque : 1549 [Nm]
engine weight/volume : 14.6 : [kg/litre]
average piston speed (Cm): 9.0 [m/s]
***************************************************************************
intake pressure at 0 [m] altitude Pi : 0.89 [kg/cm2]
mean engine pressure (M.E.P.) at 0 [m] altitude Pm : 6.77 [kg/cm2]
compression pressure at 0 [m] altitude Pc: 7.49 [kg/cm2]
estimated combustion pressure at 0 [m] Pe : 29.91 [kg/cm2]
exhaust pressure at 0 [m] Pu : 3.49 [kg/cm^2 ]
**************************************************************************
compression-start temperature at 0 [m] Tic: 378 [°K] (105 [°C])
compression-end temperature at 0 [m] Tc: 561 [°K] (288 [°C])
average engine wall temperature at 0 [m] : 476 [K] (202 [°C])
caloric combustion temperature at 0 [m] Tec: 2203 [°K] (1930 [°C])
polytroph combustion temperature at 0 [m] Tep : 2242 [°K] (1969 [°C])
estimated combustion temperature at 0 [m] Te (T4): 2187 [°K] (1914 [°C])
polytrope expansion-end temperature at 0 [m] Tup: 1189 [°K] (916 [°C])
exhaust stroke end temperature at 0 [m] Tu: 1105 [°K] (832 [°C])

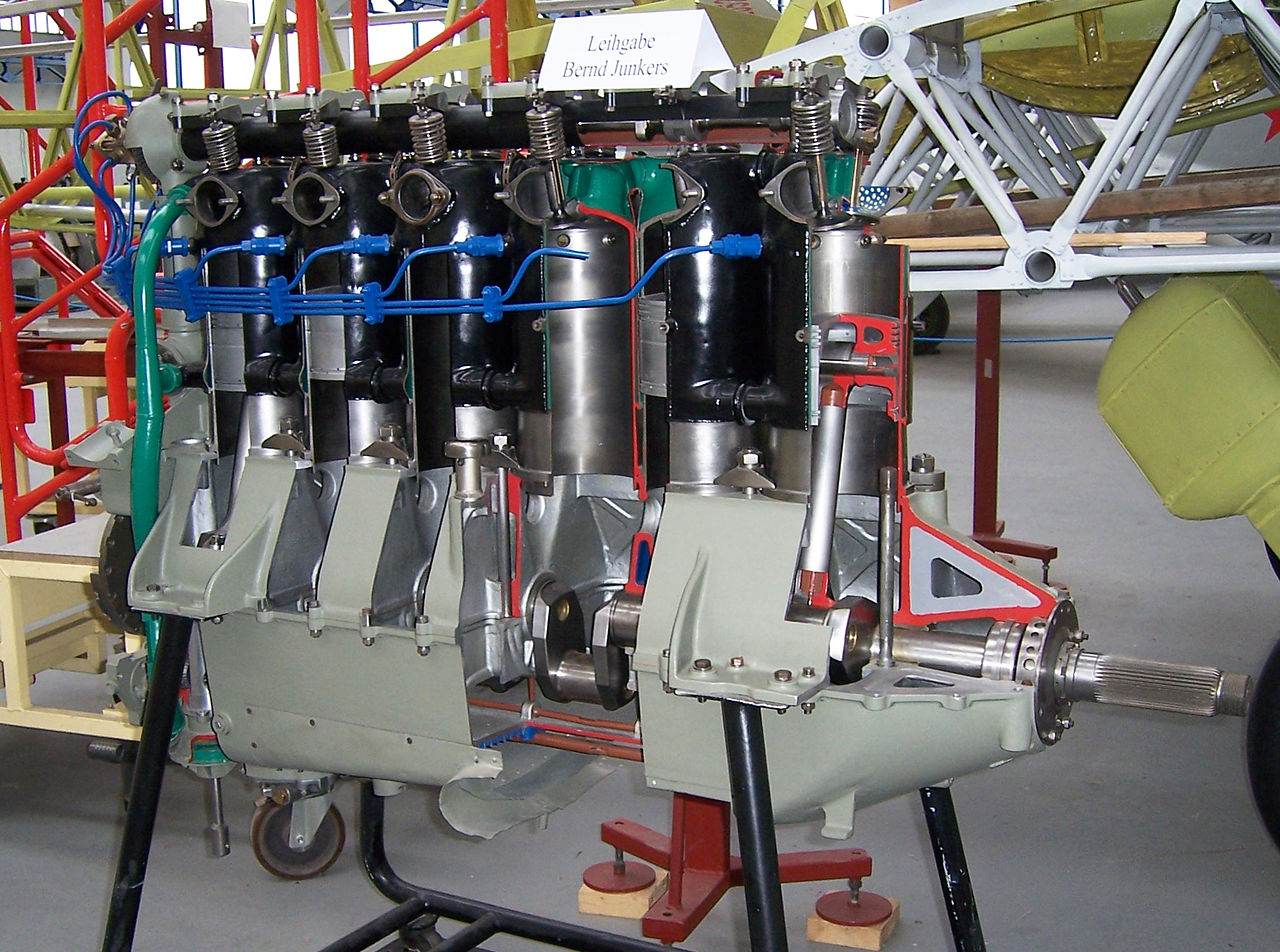

L 5 engine on display in the Technikmuseum Hugo Junkers, Dessau.
calculations for take-off/emergency power at sea level
intake pressure at sea level Pi : 0.89 [kg/cm2]
compression-end temperature at sea level max rpm Tc:564 [°K] (290 [°C])
polytrope combustion temperature at sea level Tec: 2251 [°K] (1978 [°C])
caloric combustion temperature at sea level Tec: 2179 [°K] (1906 [°C])
emergency/take off rating at 1621 [rpm] at sea level : 346 [hp]
Thermal efficiency Nth : 0.347 [ ]
Mechanical efficiency Nm : 0.782 [ ]
Thermo-dynamic efficiency Ntd : 0.272 [ ]
design hours : 1679 [hr] time between overhaul : 37 [hr]
dispersed heat by cooling fluids at 1425.00 [rpm] at 0 [m]: 26.60 [Kcal/minute/litre]
fuel consumption optimum mixture at 1425.00 [rpm] at 0 [m]: 68.21 [kg/hr]
specific fuel consumption thermo-dynamic : 221 [gr/epk] = 297 [gr/kwh]
estimated specific fuel consumption (cruise power) at 0 [m] : 310 [gr/kwh]
estimated sfc (cruise power) at 2350 [m] rich mixture : 324 [gr/kwh]
specific fuel consumption at 0 [m] at 1425 [rpm] with mixture :13.0 :1 : 295 [gr/kwh]
estimated specific oil consumption (cruise power) : 15 [gr/kwh]
