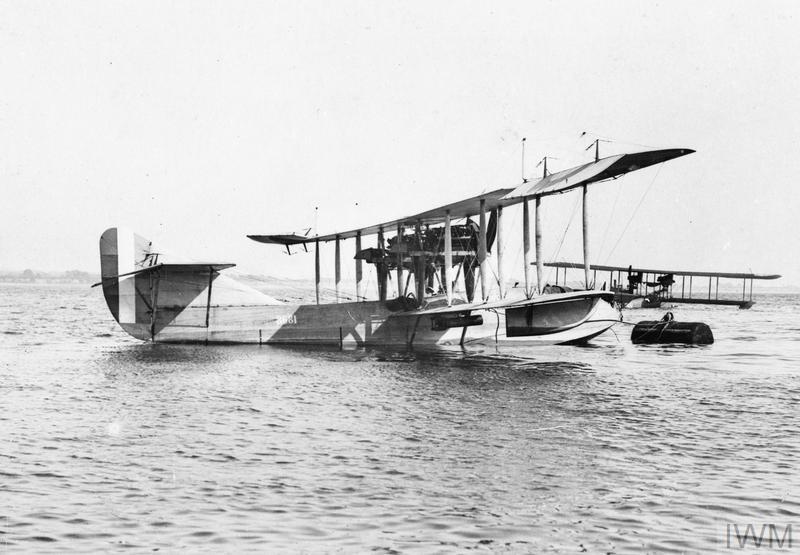

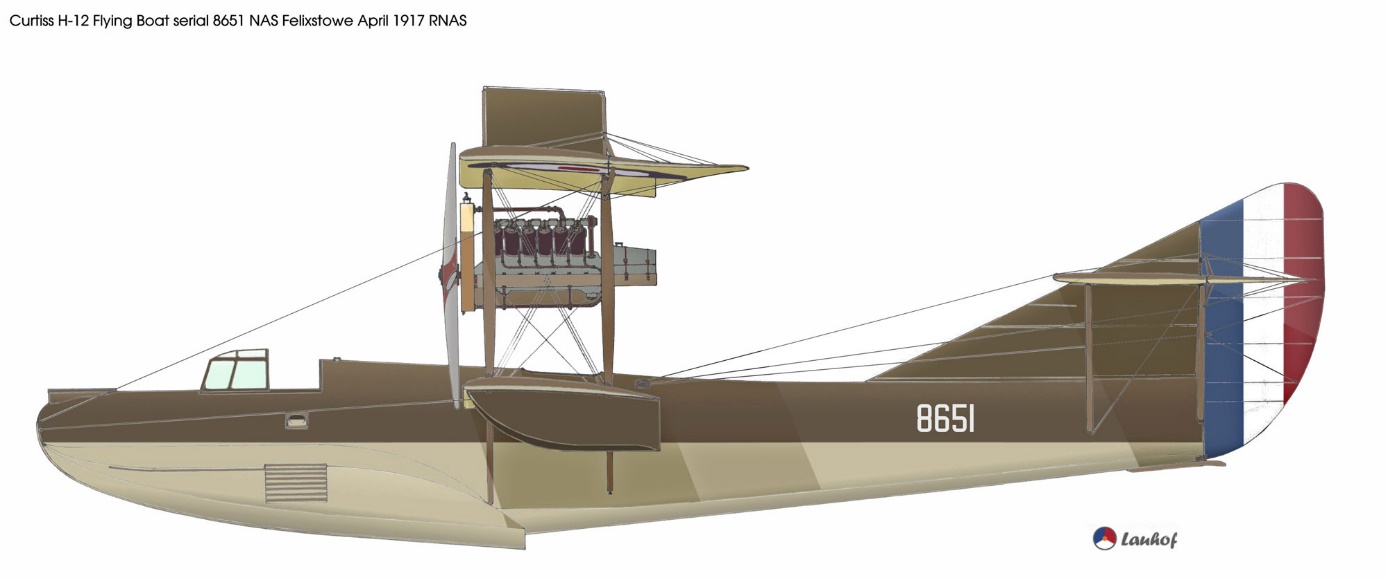

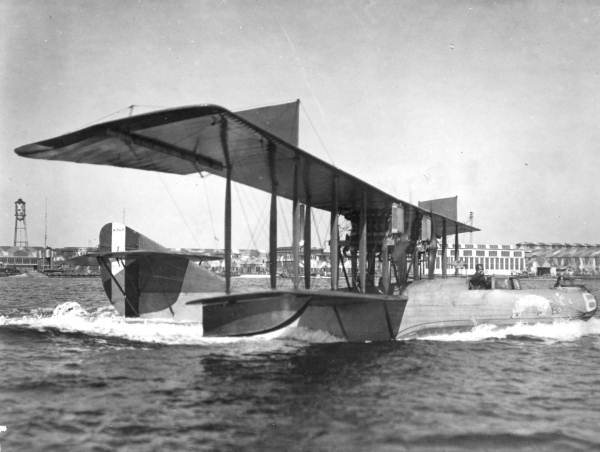

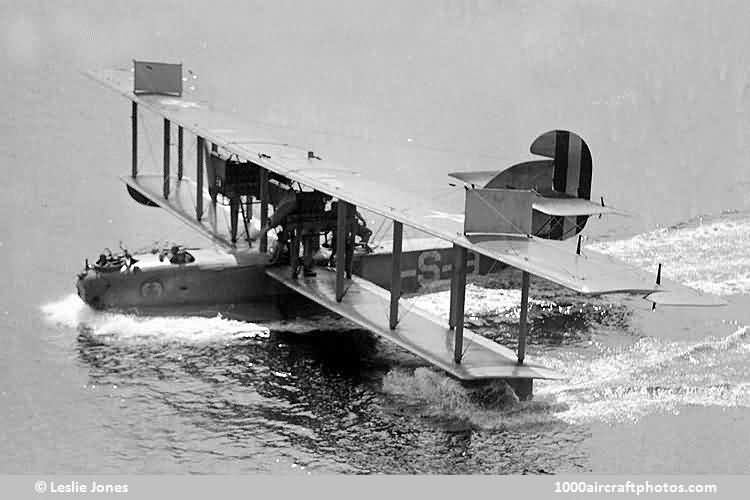

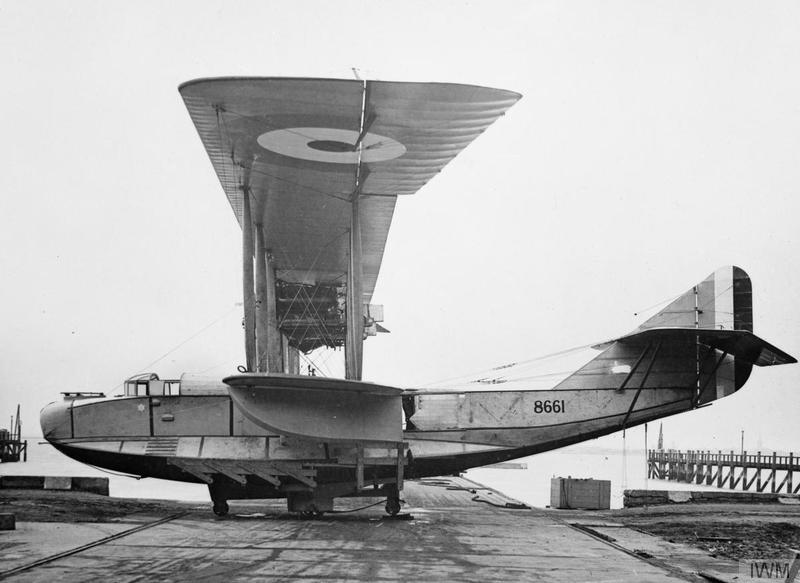

RNAS H-12 “Large America”
Curtiss H-12A
role : maritime patrol, ASW
first flight : operational : May 1917
country : United States of America
design :
production : 50 aircraft
general information :
Wing Curve : RAF no.6 fuel tank capacity : 300 gallons = 1364 litre, oil capacity : 10
gallons = 45.5 litre. Gap : 2.45m
Zeppelin LZ64 L 22 was destroyed by RNAS Curtis H12 flying boat flown by Flight Commander Robert Leckie (later Air Vice Marshal) near Terschelling on 14 May 1917 during a reconnaissance mission. (Leckie was also credited in the downing of LZ 112)
users : H-12A : RNAS, H-12L: USN
crew : 4

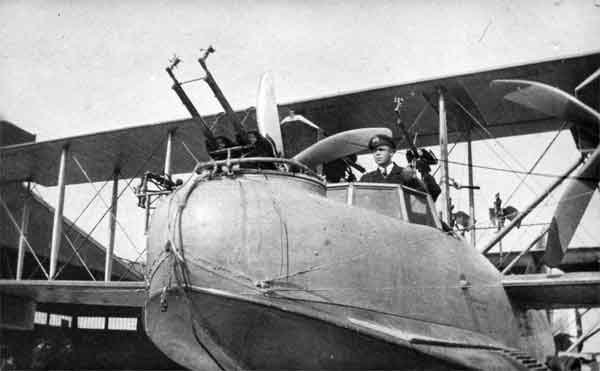

armament : 5 movable 7.70 [mm] (0.303 in) Lewis machine-guns
engine : 2 Rolls Royce Eagle I liquid-cooled 12 -cylinder V-engine 275 [hp](202.3 KW)

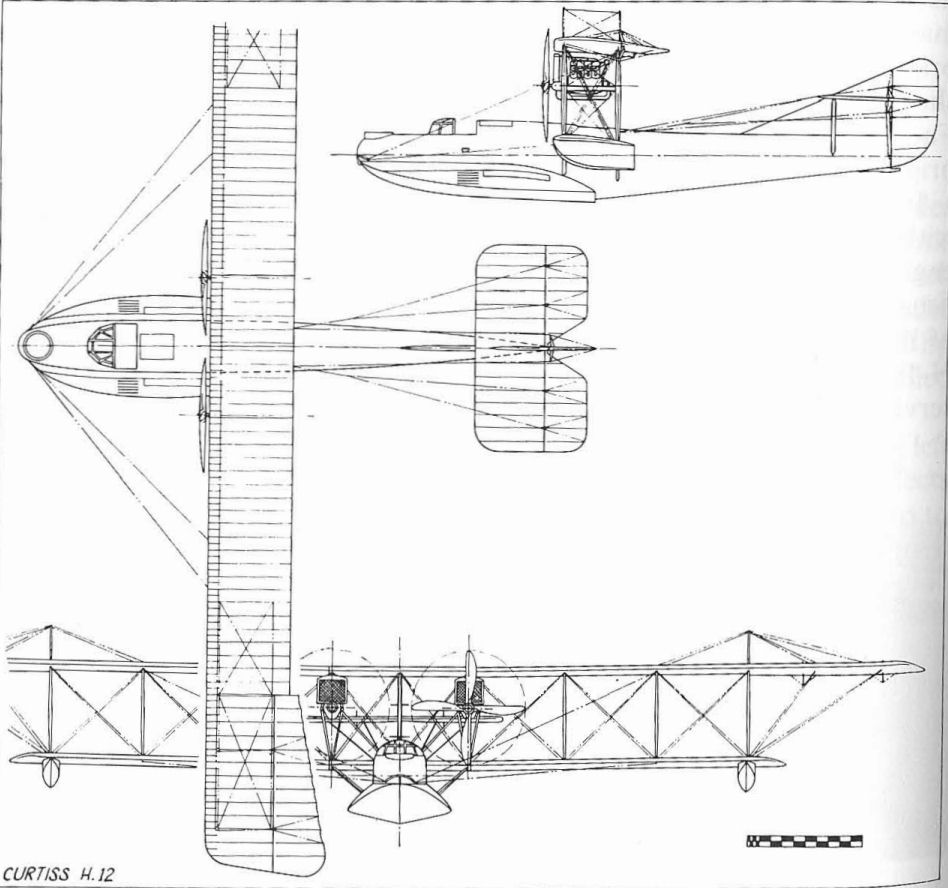

dimensions :
wingspan : 28.26 [m], length : 14.18 [m], height : 5.03[m]
wing area : 112.97 [m^2]
weights :
max.take-off weight : 4614 [kg]
empty weight operational : 3155 [kg] bombload : 210 [kg]
performance :
maximum speed : 137 [km/hr] at sea-level
climbing speed : 102 [m/min]
service ceiling : 3292 [m]
endurance : 7.94 [hours]
estimated action radius : 490 [km]
description :
4-bay biplane flying boat
2 (aid) tip floats
upper wingtips supported by slanted flying wires
two spar upper and lower wing
engines attached to the wings , landing gear, fuel and bombload in or attached to fuselage
airscrew :
two fixed pitch 2 -bladed tractor airscrews with max. efficiency :0.64 [ ]
estimated diameter airscrew 3.11 [m]
angle of attack prop : 10.39 [ ]
fine pitch
reduction : 1.00 [ ]
airscrew revs : 1700 [r.p.m.]
pitch at Max speed 1.34 [m]
blade-tip speed at Vmax and max revs. : 279 [m/s]
calculation : *1* (dimensions)
mean wing chord : 2.22 [m]
calculated wing chord (rounded tips): 2.36 [m]
wing aspect ratio : 12.72 []
gap : 2.45 [m]
gap/chord : 1.10 [ ]
seize (span*length*height) : 2016 [m^3]
calculation : *2* (fuel consumption)
oil consumption : 6.1 [kg/hr]
fuel consumption(cruise speed) : 111.0 [kg/hr] (151.4 [litre/hr]) at 69 [%] power
distance flown for 1 kg fuel : 1.11 [km/kg]
estimated total fuel capacity : 1364 [litre] (1000 [kg])
calculation : *3* (weight)
weight engine(s) dry : 627.0 [kg] = 1.55 [kg/KW]
weight 75 litre oil tank : 6.3 [kg]
oil tank filled with 3.0 litre oil : 2.7 [kg]
oil in engine 23 litre oil : 20.2 [kg]
fuel in engine 3 litre fuel : 2.0 [kg]
weight 64 litre gravity patrol tank(s) : 9.7 [kg]
weight radiator : 58.0 [kg]
weight exhaust pipes & fuel lines 28.5 [kg]
weight self-starter : 5.0 [kg]
weight cowling 8.1 [kg]
weight airscrew(s) (wood) incl. boss & bolts : 60.7 [kg]
total weight propulsion system : 822 [kg](17.8 [%])
***************************************************************
fuselage skeleton (wood gauge : 10.48 [cm]): 399 [kg]
bracing : 49.9 [kg]
plywood/wood covering hull (gauche : 1.6 [cm]): 390.8 [kg]
weight controls + indicators: 10.0 [kg]
weight seats : 12.0 [kg]
weight other details, lighting set, etc. : 9.1 [kg]
weight bomb storage : 14.7 [kg]
weight two 650 [litre] main fuel tanks empty : 104.0 [kg]
weight interior + equipment + fuel lines: 64 [kg]
total weight fuselage : 1054 [kg](22.8 [%])
***************************************************************
weight wing covering (doped linen fabric) : 72 [kg]
total weight ribs (170 ribs) : 274 [kg]
weight engine mounts : 20 [kg]
load on front upper spar (clmax) per running metre : 860.3 [N]
load on rear upper spar (vmax) per running metre : 421.7 [N]
total weight 8 spars : 318 [kg]
weight wings : 665 [kg]
weight wing/square meter : 5.88 [kg]
weight 16 interplane struts & cabane : 152.0 [kg]
weight cables (167 [m]) : 83.8 [kg] (= 501 [gram] per metre)
diameter cable : 9.0 [mm]
weight fin & rudder (9.3 [m2]) : 55.9 [kg]
weight stabilizer & elevator (12.7 [m2]): 75.6 [kg]
total weight wing surfaces & bracing : 1052 [kg] (22.8 [%])
*******************************************************************
weight machine-gun(s) : 63.5 [kg]
weight pivot mounting mg :25.0 [kg]
weight armament : 88 [kg]
********************************************************************
weight 2 tip floats : 75 [kg] (1.6 [%])
*******************************************************************
********************************************************************
calculated empty weight : 3091 [kg](67.0 [%])
weight oil for 9.5 hours flying : 57.8 [kg]
weight cooling fluids : 87.4 [kg]
weight 25 drums empty : 5.2 [kg]
weight ammunition (1175 rounds) : 45.1 [kg]
weight signal pistol with cartridges : 3.6 [kg]
*******************************************************************
calculated operational weight empty : 3285 [kg] (71.2 [%])
published operational weight empty : 3155 [kg] (68.4 [%])
_____________
| | | |o| | | |
-----------
~U~
weight crew : 324 [kg]
weight fuel for 2.0 hours flying : 222 [kg]
********************************************************************
operational weight : 3831 [kg](83.0 [%])
bomb load : 210 [kg]
operational weight bombing mission : 4041 [kg]
fuel reserve : 573 [kg] enough for 5.16 [hours] flying
operational weight fully loaded : 4614 [kg] with fuel tank filled for 79 [%]
published maximum take-off weight : 4614 [kg] (100.0 [%])
||
||
I||==|
||
||
calculation : * 4 * (engine power)
power loading (operational without bombload) : 9.47 [kg/kW]
total power : 404.5 [kW] at 1700 [r.p.m]
calculation : *5* (loads)
manoeuvre load : 1.5 [g] at 1000 [m]
limit load : 2.5 [g] ultimate load : 3.8 [g] load factor : 1.5 [g]
design flight time : 5.56 [hours]
design cycles : 270 sorties, design hours : 1500 [hours]

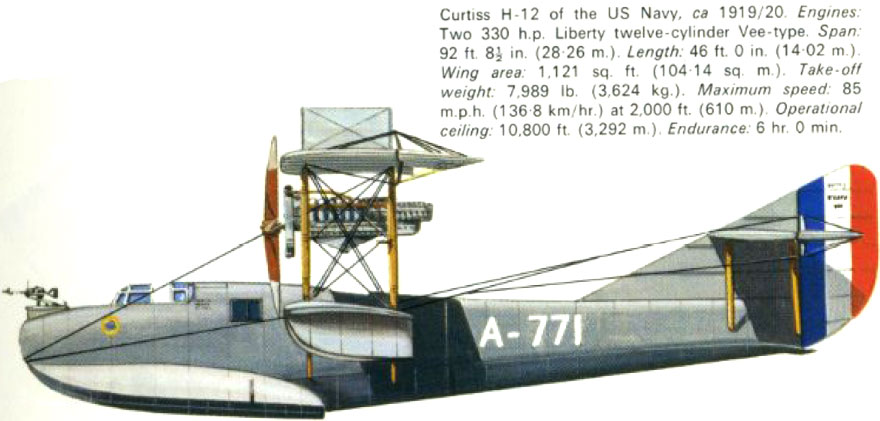

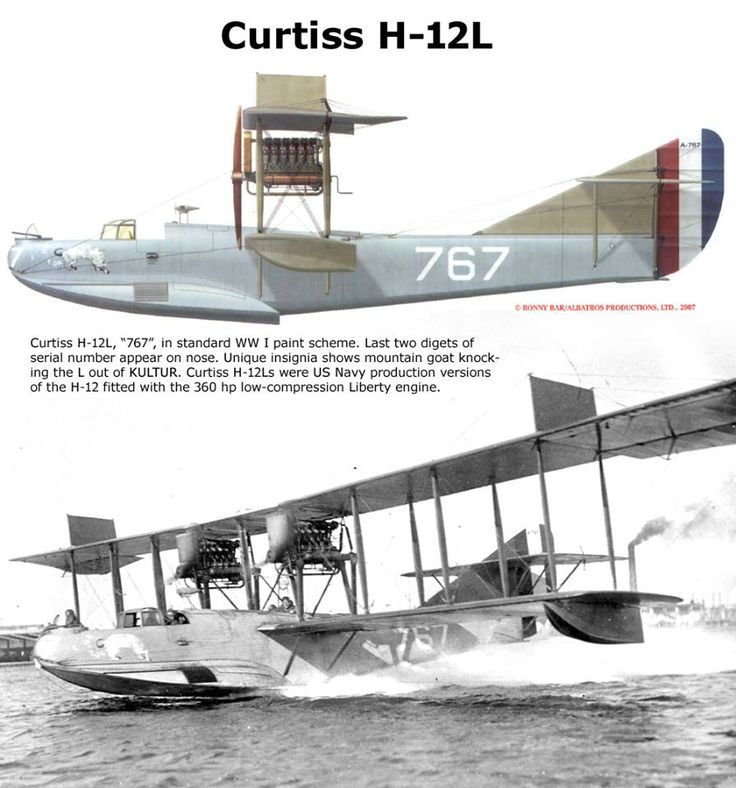

The US Navy used the Curtiss H-12L, it had Liberty engines
operational wing loading : 333 [N/m^2]
wing stress (3 g) during operation : 170 [N/kg] at 3g emergency manoeuvre
calculation : *6* (angles of attack)
angle of attack zero lift : -1.07 ["]
max. angle of attack (stalling angle) : 10.21 ["]
angle of attack at max.speed : 2.97 ["]
calculation : *7* (lift & drag ratios
lift coefficient at angle of attack 0° :0.10 [ ]
lift coefficient at max. angle of attack : 1.06 [ ]
lift coefficient at max. speed : 0.38 [ ]
induced drag coefficient at max. speed : 0.0048 [ ]
drag coefficient at max.speed : 0.0669 [ ]
drag coefficient (zero lift) : 0.0621 [ ]
calculation : *8* (speeds
stalling speed at sea-level (OW): 82 [km/u]
landing speed at sea-level (OW without bombload): 98 [km/hr]
min. drag speed (max endurance) = minimum speed*1.1 at cruise height : 97 [km/hr] at 1646 [m] (power:42 [%])
RNAS H-12
min. power speed (max range) : 97 [km/hr] at 1646 [m] (power:42 [%])
cruising speed : 123 [km/hr] op 1646 [m] (power:66 [%])
design speed prop : 130 [km/hr]
maximum speed : 137 [km/hr] op 100 [m] (power:99 [%])
climbing speed at sea-level (without bombload) : 226 [m/min]
calculation : *9* (regarding various performances)
take-off distance at sea-level : 155 [m]
lift/drag ratio : 10.98 [ ]
max. practical ceiling : 4675 [m] with flying weight :3373 [kg]
practical ceiling (operational weight): 4075 [m] with flying weight :3831 [kg]
practical ceiling fully loaded (mtow- 1 hour fuel) : 3225 [m] with flying weight :4503 [kg]
published ceiling (3292 [m]
climb to 1500m (without bombload) : 7.53 [min]
climb to 3000m (without bombload) : 19.55 [min]
max. dive speed : 342.9 [km/hr] at 2225 [m] height
load factor at max. angle turn 2.03 ["g"]
turn radius at 500m: 63 [m]
time needed for 360* turn 12.0 [seconds] at 500m
calculation *10* (action radius & endurance)
operational endurance : 7.16 [hours] with 4 crew and 210 [kg] bombload and 79.5 [%] fuel
published endurance : 7.94 [hours] with 4 crew and possible useful (bomb) load : 124 [kg] and 88.1 [%] fuel
action radius : 547 [km] with 4 crew and 20[kg] photo camera/radio transmitter or bombload
max range theoretically with additional fuel tanks for total 1769 [litre] fuel : 1440 [km]
useful load with action-radius 250km : 847 [kg]
production : 104.37 [tonkm/hour]
oil and fuel consumption per tonkm : 1.12 [kg]
Curtiss F-5L version, adapted version of the H-12, entered service with the USN at the end of WWI. It was the US Navy standard patrol aircraft until 1928.
Literature :
praktisch handbook vliegtuigen deel 1 page 242
Wikipedia
Jane’s fighting aircraft WWI page 237
