weight and performance calculations for the Boeing 40A

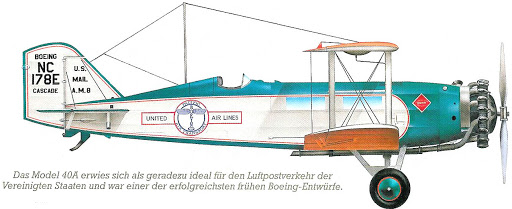

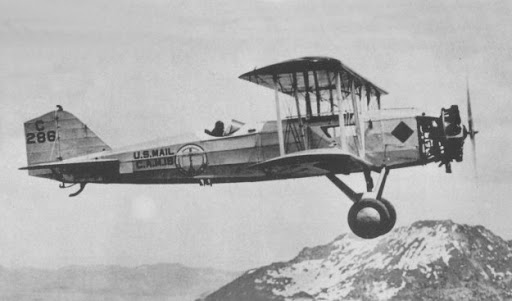

Boeing 40A
role : medium weight passenger aircraft
importance : ****
first flight : 20 July 1925 operational : July 1927
country : United States of America
design :
production : A & B model 82 aircraft
general information :
Combined mail and passenger aircraft. Could carry two passengers and 540 kg mail. The Boeing 40A was the first US civil aircraft using the now legendary Pratt & Whitney Wasp engine. The Boeing 40B had a 525 hp Pratt & Whitney Hornet engine, entering service in September 1929. It could carry 3 passenger at a cruising speed of 201 km/hr over a distance of 861 km
users : Boeing air transport
crew : 1 passengers : 2
engine : 1 Pratt & Whitney R-1340-C1 Wasp air-cooled 9 -cylinder radial engine 420 [hp](313.2 KW)
compressor height 500
dimensions :
wingspan : 13.47 [m], length : 10.14 [m], height : 3.55[m]
wing area : 50.82 [m^2]
weights :
max.take-off weight : 2727 [kg]
empty weight operational : 1605 [kg] useful load : 720 [kg]
performance :
maximum speed :206 [km/hr] at sea-level
cruise speed :185 [km/u] op 100 [m]
service ceiling : 4420 [m]
range : 1046 [km]
description :

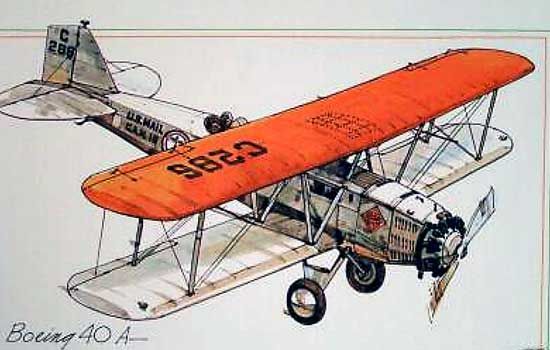

2-bay biplane with fixed landing gear and tail strut
two spar upper and lower wing
engines, landing gear, fuel and useful load in or attached to the fuselage
airscrew :
fixed pitch 2 -bladed tractor airscrew with max. efficiency :0.67 [ ]
diameter airscrew 3.05 [m]
angle of attack prop : 13.44 [ ]
fine pitch
reduction : 1.00 [ ]
airscrew revs : 2000 [r.p.m.]
pitch at Max speed 1.72 [m]
blade-tip speed at Vmax and max revs. : 324 [m/s]
calculation : *1* (dimensions)
wing chord : 2.01 [m]
mean wing chord : 1.89 [m]
calculated wing chord (rounded tips): 2.09 [m]
wing aspect ratio : 7.14 []
estimated gap : 1.67 [m]
gap/chord : 0.89 [ ]
seize (span*length*height) : 485 [m^3]
calculation : *2* (fuel consumption)
oil consumption : 5.0 [kg/hr]
fuel consumption(cruise speed) : 72.0 [kg/hr] (98.2 [litre/hr]) at 71 [%] power
distance flown for 1 kg fuel : 2.58 [km/kg] at 2210 [m] height, sfc : 323.4 [kg/kwh]
estimated total fuel capacity : 629 [litre] (461 [kg])
calculation : *3* (weight)
weight engine(s) dry : 340.0 [kg] = 1.09 [kg/KW]
weight 45.6 litre oil tank : 3.88 [kg]
oil tank filled with 2.3 litre oil : 2.1 [kg]
oil in engine 1.7 litre oil : 1.6 [kg]
fuel in engine 2.1 litre fuel : 1.57 [kg]
weight 41.8 litre gravity patrol tank(s) : 6.3 [kg]
weight inertia starter : 7.7 [kg]
weight airscrew(s) (wood) incl. boss & bolts : 37.9 [kg]
total weight propulsion system : 397 [kg](14.6 [%])
***************************************************************
fuselage skeleton (steel tubes) : 6.50 [cm]): 337 [kg]
cabin layout : pitch : 87 [cm] (1+0) seating in 2.0 rows
weight 4.0 windows : 3.60 [kg]
passenger cabin width : 0.89 [m] cabin length : 1.74 [m] cabin height : 1.40 [m]
weight cabin furbishing : 4.13 [kg]
weight cabin floor : 9.91 [kg]
bracing : 24.1 [kg]
fuselage covering ( 19.4 [m2] doped linen fabric) : 6.0 [kg]
weight instruments. : 2.5 [kg]
weight lighting : 1.1 [kg]
weight controls : 5.5 [kg]
weight seats : 15.0 [kg]
weight 587 [litre] main fuel tank empty : 47.0 [kg]

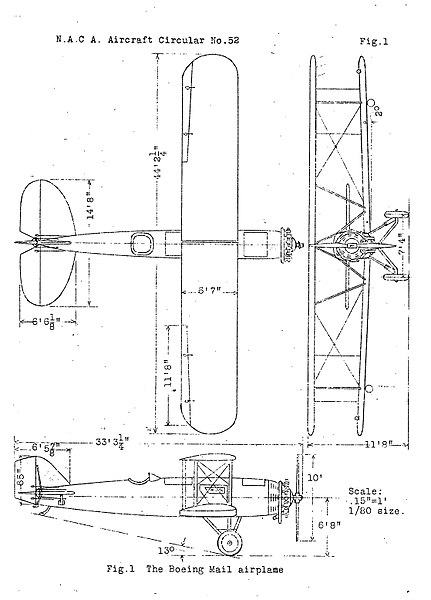

Length : 33 ft 3.25 in = 10.14m span : 44ft 2.25 in = 13.47m Chord : 6 ft 7 in = 2.01m airscrew : 10 ft = 3.05m height : 11 ft 8 in = 3.55m
weight air conditioning : 3 [kg]
weight engine mounts & firewalls : 16 [kg]
total weight fuselage : 475 [kg](17.4 [%])
***************************************************************
weight plywood wing covering : 76 [kg]
total weight ribs (79 ribs) : 162 [kg]
load on front upper spar (clmax) per running metre : 1898.9 [N]
load on rear upper spar (vmax) per running metre : 581.5 [N]
total weight 8 spars : 197 [kg]
weight wings : 435 [kg]
weight wing/square meter : 8.57 [kg]
weight 8 interplane struts & cabane : 37.0 [kg]
weight cables (78 [m]) : 24.2 [kg] (= 311 [gram] per metre)
diameter cable : 7.1 [mm]
weight fin & rudder (2.1 [m2]) : 18.4 [kg]
weight stabilizer & elevator (5.7 [m2]): 49.4 [kg]
total weight wing surfaces & bracing : 564 [kg] (20.7 [%])
*******************************************************************
wheel pressure : 1363.5 [kg]
weight 2 wheels (880 [mm] by 135 [mm]) : 62.3 [kg]
weight tailskid : 7.7 [kg]
weight undercarriage with axle 80.5 [kg]
total weight landing gear : 150.5 [kg] (5.5 [%]
*******************************************************************
********************************************************************
calculated empty weight : 1587 [kg](58.2 [%])
weight oil for 6.8 hours flying : 33.9 [kg]
calculated operational weight empty : 1620 [kg] (59.4 [%])
published operational weight empty : 1605 [kg] (58.9 [%])
_____________
| | o | |
-------------
"
weight crew : 81 [kg]
weight fuel for 2.0 hours flying : 144 [kg]
********************************************************************
operational weight empty: 1845 [kg](67.7 [%])
weight 2 passengers : 154 [kg]
weight luggage & freight : 566 [kg]
operational weight loaded: 2565 [kg](67.7 [%])
fuel reserve : 161.6 [kg] enough for 2.24 [hours] flying
operational weight fully loaded : 2727 [kg] with fuel tank filled for 66 [%]
published maximum take-off weight : 2727 [kg] (100.0 [%])
||
||
I||==|
||
||
calculation : * 4 * (engine power)
power loading (Take-off) : 8.71 [kg/kW]
power loading (operational without useful load) : 5.89 [kg/kW]
total power : 313.2 [kW] at 2000 [r.p.m]

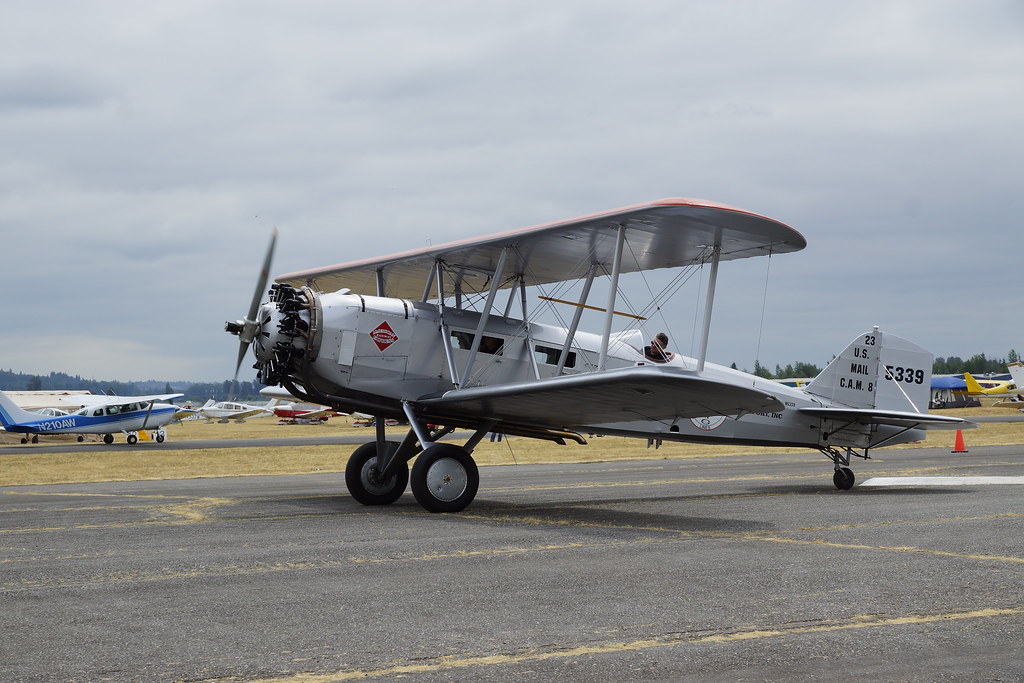

Restored and airworthy Boeing 40C, c/n 1043, the oldest flying Boeing in the world.
calculation : *5* (loads)
manoeuvre load : 3.7 [g] at 1000 [m]
limit load : 3.0 [g] ultimate load : 4.5 [g] load factor : 2.5 [g]
design flight time : 3.95 [hours]
design cycles : 5161 sorties, design hours : 20381 [hours]
operational wing loading : 356 [N/m^2]
wing stress (3 g) during operation : 125 [N/kg] at 3g emergency manoeuvre
calculation : *6* (angles of attack)
angle of attack zero lift : -1.20 ["]
max. angle of attack (stalling angle) : 12.58 ["]
angle of attack at max. speed : 0.95 ["]
calculation : *7* (lift & drag ratios
lift coefficient at angle of attack 0° :0.10 [ ]
lift coefficient at max. angle of attack : 1.15 [ ]
lift coefficient at max. speed : 0.18 [ ]
induced drag coefficient at max. speed : 0.0025 [ ]
drag coefficient at max. speed : 0.0363 [ ]
drag coefficient (zero lift) : 0.0337 [ ]
calculation : *8* (speeds
stalling speed at sea-level (OW loaded : 2655 [kg]): 97 [km/u]
landing speed at sea-level: 114 [km/hr]
min. drag speed (max endurance) : 144 [km/hr] at 2210 [m](power :51 [%])
min. power speed (max range) : 144 [km/hr] at 2210 [m] (power:51 [%])
max. rate of climb speed : 122.1 [km/hr] at sea-level
cruising speed : 185 [km/hr] op 2210 [m] (power:75 [%])
design speed prop : 196 [km/hr]
maximum speed : 206 [km/hr] op 100 [m] (power:108 [%])
climbing speed at sea-level : 381 [m/min]
calculation : *9* (regarding various performances)
take-off speed : 118.3 [km/u]
static prop wash : 167 [km/u]
take-off distance at sea-level : 165 [m]
lift/drag ratio : 9.67 [ ]
climb to 1000m with max payload : 5.58 [min]
climb to 2000m with max payload : 13.54 [min]
climb to 3000m with max payload : 24.89 [min]
practical ceiling (operational weight 1845 [kg] ) : 6358 [m]
practical ceiling fully loaded (mtow- 30 min.fuel:2691 [kg] ) : 4183 [m]
max. dive speed : 437.1 [km/hr] at 3183 [m] height
turning speed at CLmax : 126.2 [km/u] at 50 [m] height
turn radius at 50m: 57 [m]
time needed for 360* turn 10.2 [seconds] at 50m
load factor at max. angle turn 2.41 ["g"]
calculation *10* (action radius & endurance)
published range : 1046 [km] with 1 crew and 619.4 [kg] useful load and 88.1 [%] fuel
range : 787 [km] with 1 crew and 720.0 [kg] useful load and 66.3 [%] fuel
range : 2193 [km] with 2.0 passengers with each 10 [kg] luggage and 184.7 [%] fuel
Available Seat Kilometers (ASK) : 4386 [paskm]
max range theoretically with additional fuel tanks for total 1399.1 [litre] fuel : 2641.2 [km]
useful load with range 500km : 831 [kg]
useful load with range 500km : 2 passengers
production (useful load): 154.15 [tonkm/hour]
production (passengers): 370.80 [paskm/hour]
oil and fuel consumption per tonkm : 0.50 [kg]
oil and fuel consumption per paskm : 0.21 [kg]
fuel cost per paskm : 0.21 [eur]
crew cost per paskm : 0.40 [eur]
_
I=_°°°/
°
economic hours : 12775 [hours] is less then design hours
time between engine failure : 195 [hr]
writing off per paskm : 0.25 [eur]
insurance per paskm : 0.1733 [eur]
rigging cost per paskm : 0.0159 [eur]
maintenance cost per paskm : 0.6650 [eur]
direct operating cost per paskm : 1.70 [eur]
